Cellular Antenna Kit
35544
OrderableCellular Antenna Kit
Overview
ANT 2dBd Omni 4G 3G Cellular Antenna Kit w/Surge Suppressors & Cables (Ships as 15940, 29553, 31179, 35538, 35537, & 32262)

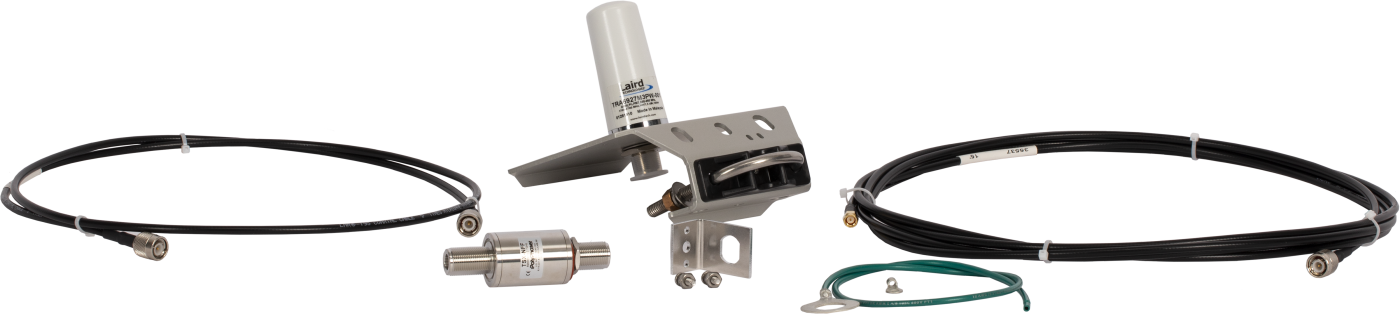

This cellular antenna kit includes all the necessary cables, mounts, connectors, and antenna for typical cellular transceiver applications.
Technical Description
This omnidirectional cellular antenna kit is designed for use where an external antenna or surge suppression is required. The kit includes a low-profile cellular antenna with mounting hardware to attach the antenna to a mast or crossarm. Coaxial cables are included to connect the cellular radio to the surge suppressor, and the surge suppressor to the antenna.
Specifications
- Weight
- 1.07 kg
(2.35 lb)
Antenna
- Model
- TRA6927M3PW-001
- Frequency Range
- 698 to 960, 1710 to 2700 MHz
- Gain
- 2 dBd
- Maximum Power
- 100 W
- Impedance
- 50 ohm
- Termination
- N female
- Length
- 63.5 cm
(25 in.)
Antenna Cable
- Type
- LMR-195
- Termination 1
- N male
- Termination 2
- N male
- Length
- 1.52 m
(5 ft)
Surge Suppressor
- Model
- TSX-NFF
- Frequency Range
- 698 MHz to 2.7 GHz
- Maximum Power
- 500 W
- Impedance
- 50 ohm
- Termination
- N female
Surge Suppressor Cable
- Type
- LMR-195
- Termination 1
- N male
- Termination 2
- SMA male
- Length
- 4.75 m
(15 ft)
