Spread-Spectrum Antenna Kit
35542
OrderableSpread-Spectrum Antenna Kit
Overview
ANT 3dBd Omni 900MHz Antenna Kit w/Surge Suppressor & Cables (Ships as 15940, 29553, 31179, 35538, 41366, & 14221)

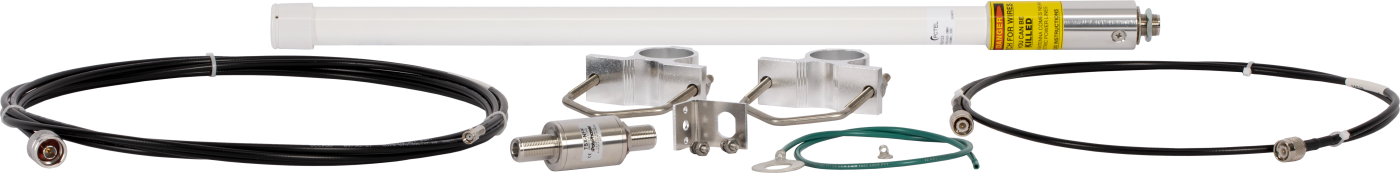

This spread-spectrum antenna kit includes all the necessary cables, mounts, connectors, and antenna for typical spread-spectrum transceiver applications.
Technical Description
This omnidirectional spread-spectrum antenna kit is designed for use with stations where an external antenna or surge suppression is required. The kit includes a robust spread-spectrum antenna with mounting hardware to attach the antenna to a mast. Coaxial cables are included to connect the spread-spectrum radio to the surge suppressor, and the surge suppressor to the antenna.
Specifications
- Weight
- 1.45 kg
(3.2 lb)
Antenna
- Model
- FG9023
- Frequency Range
- 902 to 928 GHz
- Gain
- 3 dBd
- Impedance
- 50 ohm
- Termination
- N socket (female)
- Length
- 63.5 cm
(25 in.)
Antenna Cable
- Type
- LMR-195
- Termination 1
- N pin (male)
- Termination 2
- N pin (male)
- Length
- 1.52 m
(5 ft)
Surge Suppressor
- Model
- TSX-NFF
- Frequency Range
- 698 MHz to 2.7 GHz
- Maximum Power
- 500 W
- Impedance
- 50 ohm
- Termination
- N socket (female)
Spread-Spectrum Cable
- Type
- LMR-195
- Termination 1
- N pin (male)
- Termination 2
- RPSMA pin (male)
- Length
- 4.75 m
(15 ft)
