35541
Wi-Fi Antenna Kit
35541
OrderableWi-Fi Antenna Kit
Overview
ANT 5.8dBd Omni 2.4GHz WIFI Antenna Kit w/Surge Suppressor & Cables5.8dBd Omni 2.4GHz WIFI Antenna Kit w/Surge Suppressor & Cables (Ships as 15940, 29553, 31179, 35538, 41366, & 30411)

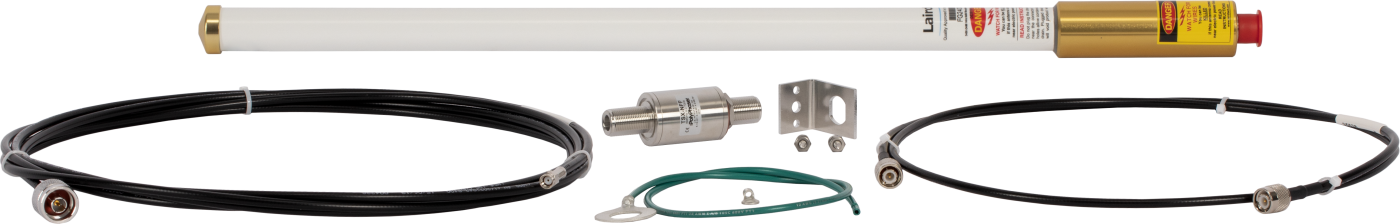

This Wi-Fi antenna kit includes all the necessary cables, mounts, connectors, and antenna for typical Wi-Fi transceiver applications.
Technical Description
This omnidirectional Wi-FI antenna kit is designed for use with stations where an external Wi-Fi antenna or surge suppression is required. The kit includes a robust Wi-Fi antenna with mounting hardware to attach the antenna to a mast. Coaxial cables are included to connect the Wi-Fi radio to the surge suppressor, and the surge suppressor to the antenna.
Specifications
- Weight
- 1.11 kg
(2.45 lb)
Antenna
- Model
- FG24008
- Frequency Range
- 2.4 to 2.5 GHz
- Gain
- 5.8 dBd
- Impedance
- 50 ohm
- Termination
- N female
- Length
- 62.2 cm
(24.5 in.)
Antenna Cable
- Type
- LMR-195
- Termination 1
- N male
- Termination 2
- N male
- Length
- 1.52 m
(5 ft)
Surge Suppressor
- Model
- TSX-NFF
- Frequency Range
- 698 MHz to 2.7 GHz
- Maximum Power
- 500 W
- Impedance
- 50 ohm
- Termination
- N female
Wi-Fi Cable
- Type
- LMR-195
- Termination 1
- N male
- Termination 2
- RPSMA male
- Length
- 4.75 m
(15 ft)
