GPS Antenna Kit
35540
OrderableGPS Antenna Kit
Overview

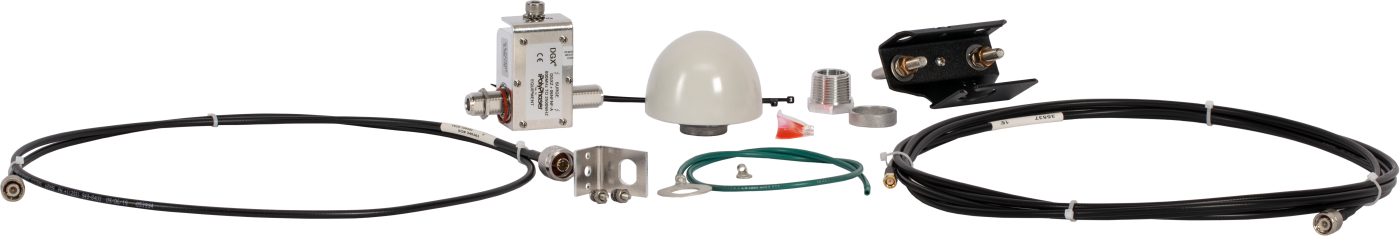

ANT 3dBi GPS Antenna Kit w/Surge Suppressor & Cables (31180, 29553, 31179, 32289-006112, 35537, 17992, 30626)
This GPS antenna kit includes all the necessary cables, mounts, connectors, and antenna for typical GPS receiver applications.
Technical Description
This GPS antenna kit is designed for use with applications that use GPS signals for precision timing (such as ALERT2 and GOES) and where the GPS signal my be weak or surge suppression is required. The kit includes an active GPS antenna with mounting hardware to attach the antenna to a mast or crossarm. Coaxial cables are included to connect the GPS receiver to the surge suppressor, and the surge suppressor to the antenna.
Specifications
- Weight
- 1.13 kg
(2.5 lb)
Antenna
- Model
- 57861-20
- Frequency Range
- GPS L1
(1575.4200 MHz)
- Gain
- 28 dBi
- Termination
- TNC socket (female)
- Impedance
- 50 ohm
- Prime Power
- 20 mA @ 3.3 V
- Mast Mounting
- 3.81 to 5.08 cm
(1.5 to 2 in.)
Antenna Cable
- Type
- LMR-195
- Termination 1
- TNC pin (male)
- Termination 2
- N pin (male)
- Length
- 1.52 m
(5 ft)
Surge Suppressor
- Model
- DGXZ+06NFNF-A
- Frequency Range
- 800 MHz to 2.5 GHz
- Maximum Power
- 300 W
- Impedance
- 50 ohm
- Termination
- N socket (female)
GPS Cable
- Type
- LMR-195
- Termination 1
- N pin (male)
- Termination 2
- SMA pin (male)
- Length
- 4.75 m
(15 ft)
