VHF Antenna Kit
35539
OrderableVHF Antenna Kit
Overview

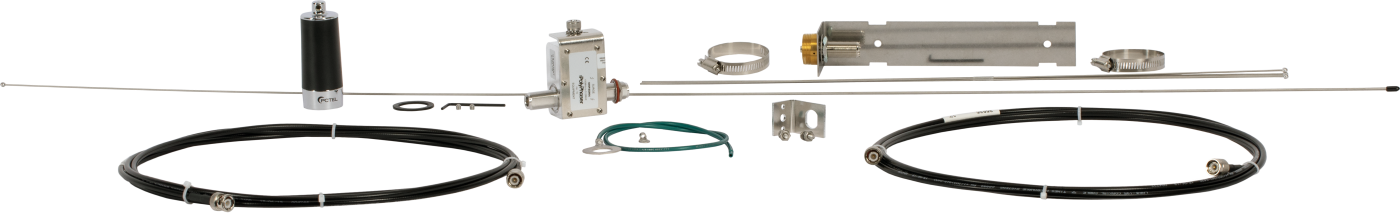

ANT 3dBd Omni VHF Antenna Kit w/Surge Suppressor & 3.5m (12ft) Cables (Ships as 29549, 29553, 31179, 35535, 35536, 35534, & 35533)
This VHF antenna kit includes all the necessary cables, mounts, connectors, and antenna for typical VHF radio applications.
Technical Description
This omnidirectional VHF antenna kit is designed for use with typical ALERT, ALERT2, and other VHF applications. The whip-style antenna and ground radials are field-tunable for a specific frequency, and the stainless-steel mounting hardware allows for easy installation atop a mast. Coaxial cables are included to connect the VHF radio to the surge suppressor, and the surge suppressor to the antenna.
Specifications
- Weight
- 1.18 kg
(2.6 lb)
Antenna
- Model
- PCTEL MHBDC5800
- Frequency Range
- 144 to 174 MHz
- Gain
- 3 dBd
- Maximum Power
- 200 W
- Impedance
- 50 ohm
- Material
- Stainless steel
Antenna Adapter
- Model
- MBS
- Frequency Range
- 132 to 512 MHz
- Maximum Power
- 250 W
- Termination
- N female
- Material
- Stainless steel
- Mast Mounting
- 2.54 to 5.08 cm
(1 to 2 in.) outer diameter
Antenna Cable
- Type
- LMR-195
- Termination 1
- N male
- Termination 2
- N male
- Length
- 3.66 m
(12 ft)
Surge Suppressor
- Model
- VHF50HN-B
- Frequency Range
- 100 to 512 MHz
- Maximum Power
- 750 W
- Impedance
- 50 ohm
- Termination
- N female
VHF Cable
- Type
- LMR-195
- Termination 1
- N male
- Termination 2
- BNC male
- Length
- 3.66 m
(12 ft)
