35219
Replacement Temperature/RH Element and Cap for HygroVue 5
35219
OrderableReplacement Temperature/RH Element and Cap for HygroVue 5
Overview
Replacement HygroVue5 Temperature / RH Element & Cap

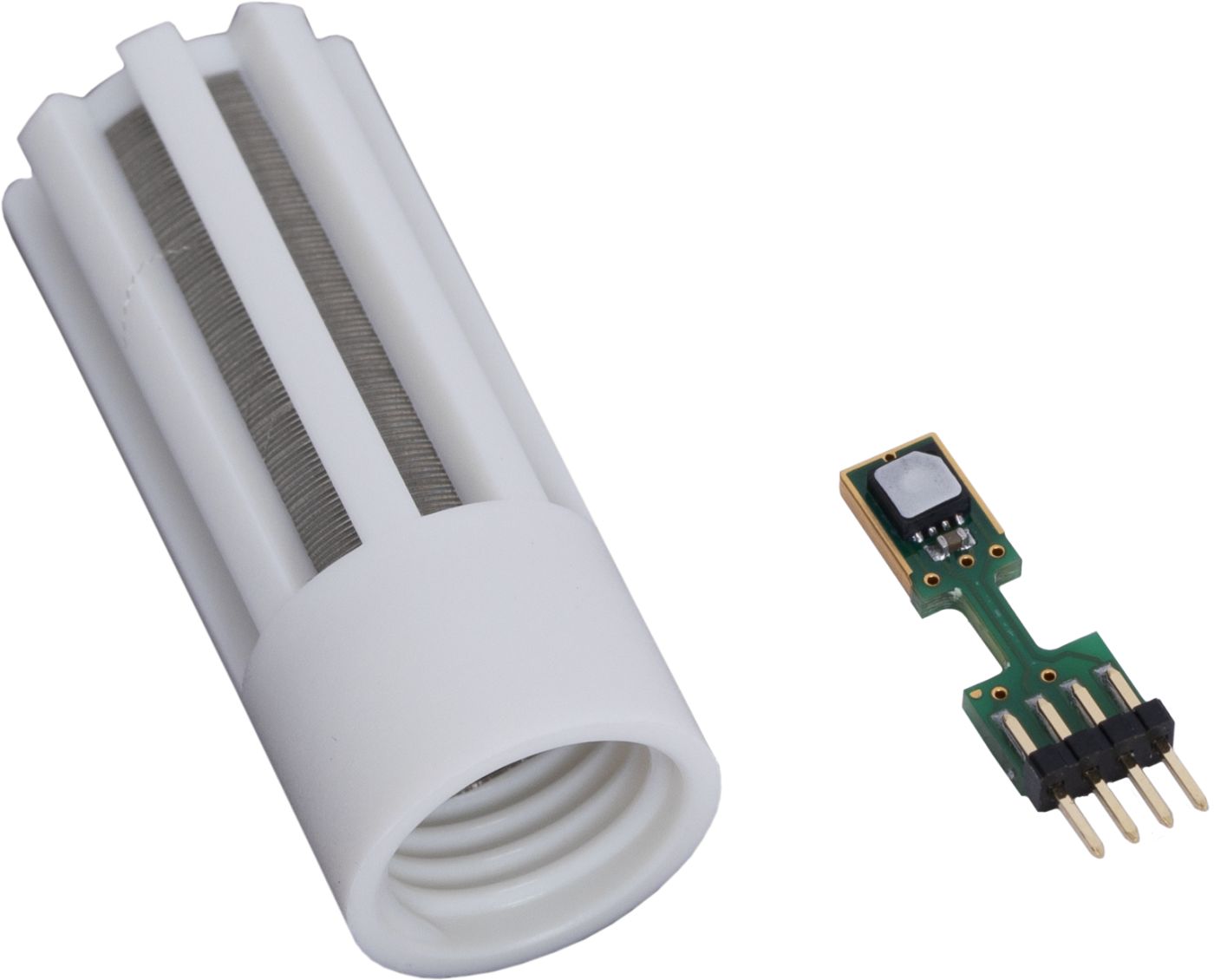

The 35219 replaces the sensor element, filter, and cap of a HygroVue™5 Digital Temperature and Relative Humidity Sensor. Replacement can take place in the field—eliminating downtime.
Technical Description
The 35219 Replacement Temperature/RH Element and Cap is field-replaceable, as needed, eliminating the downtime typically required for the recalibration process. The 35219 is plugged into a socket underneath the end cap and filter assembly. Campbell Scientific recommends chip replacement every two to three years, depending on the application.
Benefits
- Replacement chip reduces downtime and maintenance costs associated with sensor calibration
- Replacement screen restores sensor to factory performance and airflow
- Individually calibrated temperature and RH (relative humidity) elements traceable to NPL and NIST standards
Specifications
- Sensing Element
- Sensirion SHT35 enhanced by Campbell Scientific
- Sensor Protection
- Outer glass-filled polypropylene cap fitted with a stainless-steel mesh dust filter with nominal pore size of < 30 µm.
The sensor element has a PTFE protective film with a filtration efficiency of > 99.99% for particles of 200 nm or larger size.
- Weight
- 22.68 g
(0.05 lb)
