OrderableRJ-11 to RS-232 DB9 Female Converter
Overview
The 34540, manufactured by Morningstar, converts a controller's meter port (RJ-11 phone-type connector) to a standard RS-232 serial connector for connection to a PC or other equipment. The 34540 can be used with any Morningstar controller or inverter that is equipped with a meter connection but does not already have an RS-232 port. This conversion enables communication with a variety of third-party serial-enabled devices such as the following:
- A PC running Morningstar’s MS View software or any other compatible software
- A serial-enabled device such as an Internet gateway
- Another Modbus-enabled hardware device (i.e., a data logger) at the site that needs to access solar system information
Establishing a communication link enables the monitoring or logging of data from the controller or inverter, as well as the customization of any user-adjustable settings.

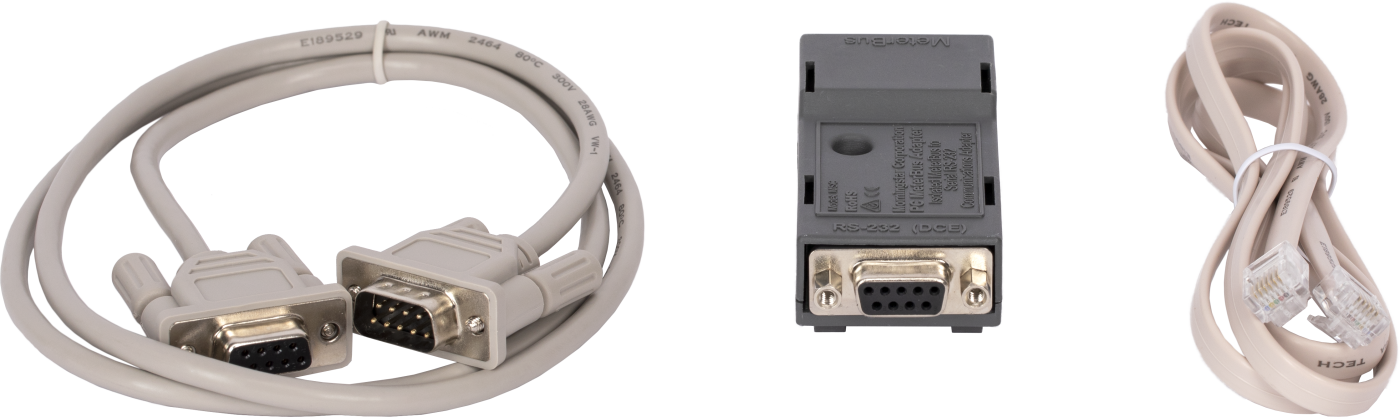

The 34540 is sold as a kit that includes the following:
- PC Meterbus Adapter
- RS-232 cable with connectors (0.91 m [3.0 ft])
- RJ-11 cable with connectors (0.91 m [3.0 ft])
Specifications
- Operating Temperature Range
- -40° to +60°C
- Storage Temperature Range
- -55° to +80°C
- Humidity
- 100%
(non-condensing environment)
- Enclosure
- IP20
- COM Settings
- 9600 baud
- COM Settings
- 8 data bits
- COM Settings
- 1 or 2 stop bits
- COM Settings
- No parity
- COM Settings
- No hardware flow control
- Cable Length
- 0.91 m
(3.0 ft) for RS-232 cable
- Cable Length
- 0.91 m
(3.0 ft) for RJ-11 cable
- Dimensions
- 72 x 35 x 22 mm
(2.83 x 1.37 x 0.87 in.)
- Weight
- 35 g
(0.08 lb)
