34296

The 34296 cable, used with the CS140 Background Luminance Sensor, forces communications to RS-232 38400 baud, and sensor id “0.” The CS140 continues to draw power from the existing power source. After the sensor is removed from its power source, the sensor returns to its previous communication address and settings.

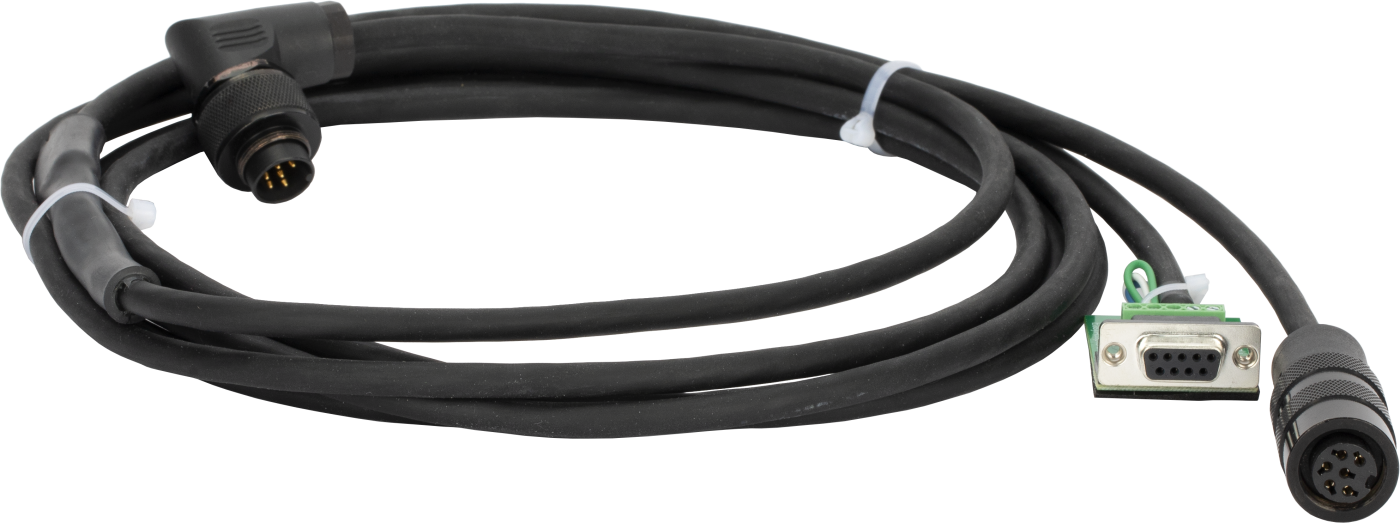

The 34296 cable has connectors allowing it to be put between the CS140 and the existing connection, and a 5 m (16.4 ft) flying lead with a nine-way D connector for RS-232 communication. The sensor continues to draw power from the existing source. When installed, the existing communication path is disconnected, and communication via the flying lead is forced to RS-232, 38400 bd with a sensor ID of “0.”
