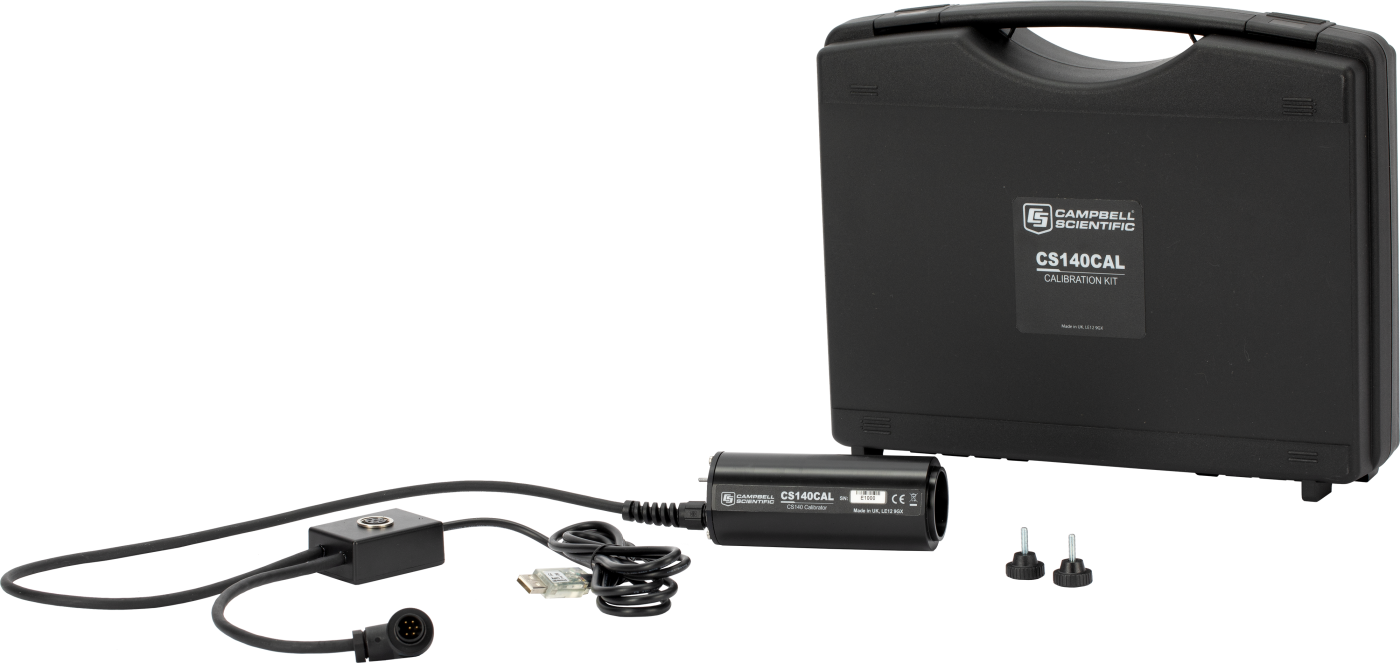

OrderableCS140 Calibrator
Overview
The CS140 Calibrator is a high-quality device to generate a known luminance level for calibrating a CS140 Background Luminance Sensor. It is powered from the CS140 supply and is used while in communication with it.
Key Advantages
Technical Description
The calibration is made by using high-quality LEDs to produce a known light level, white, with a value of 4500 cd/m2. The light has a flat spectrum so the calibration is valid over the CIE spectrum sensitivity of the CS140 itself. The LEDs illuminate a diffuser, which itself illuminates the CS140 under calibration. An on/off switch turns off the LEDs and allows the unit to provide a zero check. Each unit is individually calibrated, and the value of luminance it produces is put on a label on the unit. This calibration is traceable, and this value is used in the calibration process.
Benefits
- Type certified for aviation use by the German Meteorological Service, Deutscher Wetterdienst (DWD)
Specifications
- Generated Light Level
- 4500 cd/m2
(individually calibrated)
- Accuracy
- 5%
- Operating Temperature Range
- 0 to 40°C
- Communications
- RS-232, 38400 Bd
(communication with CS140 and laptop)
- Diameter
- 4.6 cm
(1.81 in.) excluding cables
- Length
- 7.2 cm
(2.83 in.) excluding cables
- Weight
- ~300 g
(~0.66 lb)
