34031

BP12 and BP24 10 A Battery Cable
34031

34031

Orderable

BP12 and BP24 10 A Battery Cable

Model:
34031
Item Number:
34031
Warranty:
1 year

Overview

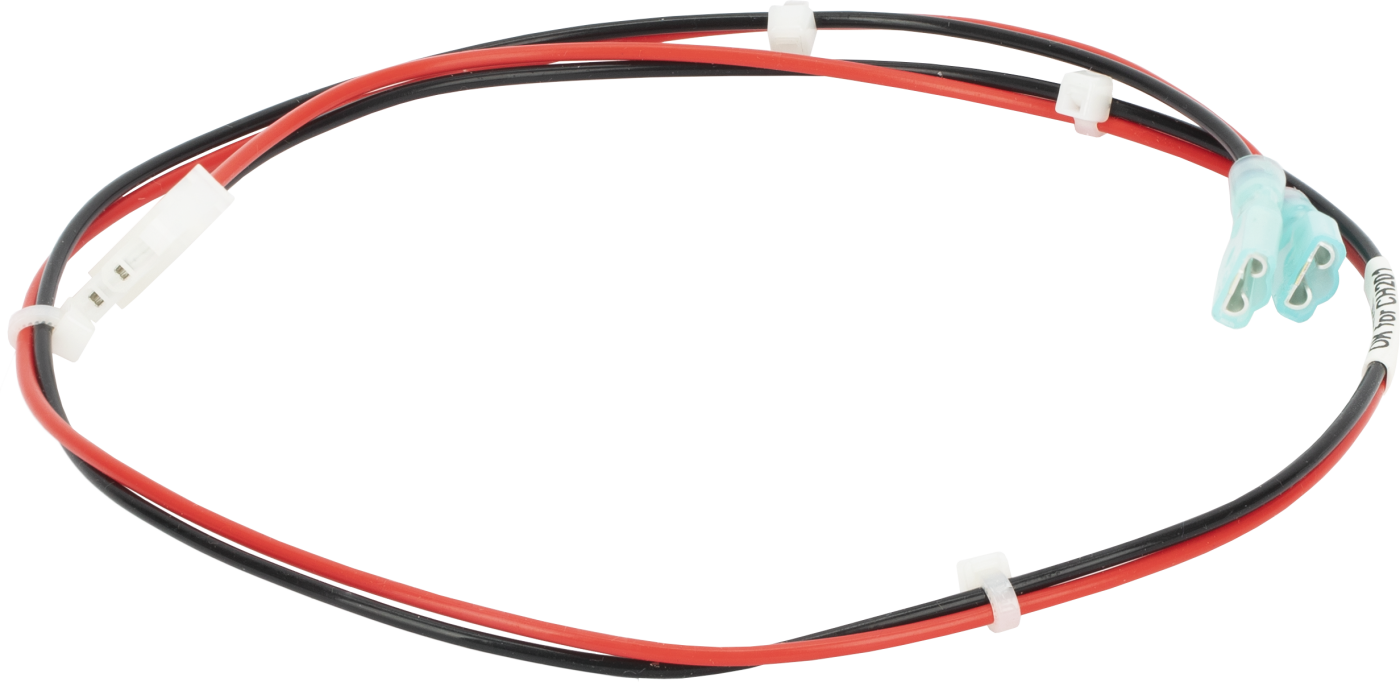

ACC BP12 & BP24 10A Battery Cable, 0.6m (2ft)

This 24 in. battery cable comes attached to the BP12 and BP24 batteries. One end terminates in clips to connect to the battery's post. The other end terminates in a white connector to plug into a CH150, CH200, CH201, CH100, PS150, PS200, or PS100. The 34031 may be purchased to replace a lost or damaged cable, or it may be purchased by those supplying their own batteries locally.

Note: When a BP12 or BP24 is used with a CH201, the 34031 must be used and not the 22024.

Specifications

Load
10 A
Cable Type
16 AWG
Cable Length
60.96 cm

(24 in.)

Weight
22.68 g

(0.05 lb)
