33251
OrderableDIN Rail Mountable 2-Wire 5.2 mm Grounded Screw Connector
Overview
CON DIN TRM Screw 2-Trm 1-Lvl 1-Circ 12-26 AWG PE Green/Yellow UT2.5 PHOENIX 3044092

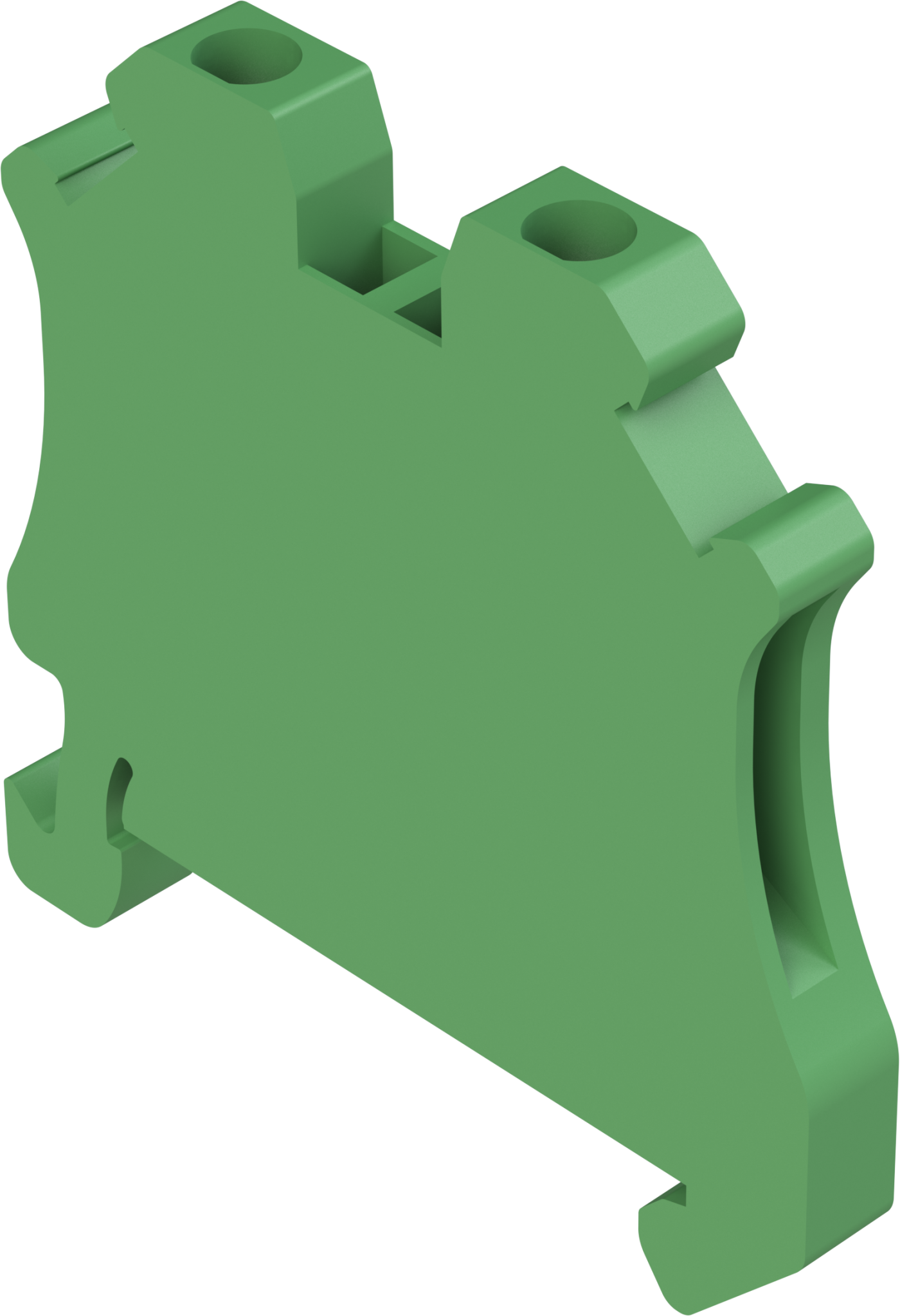

The 33251 is a DIN rail mountable terminal connector that can be used between sensors (or other devices) and a data logger. The 33251 is a two-wire, 5.2 mm screw connector that is grounded to the DIN rail mounting bracket it is attached to.
Specifications
- Hardware Type
- Terminal block
- Why/When to Use
- Sensor connections
- Grounded
- Yes
- Number of Wires
- 2 (26 to 12 AWG)
- Connection Method
- Screw
- Maximum Ferrule Size
- 16 AWG
- Mounting Width
- 5.2 mm
- Dimensions
- 5.08 x 5.08 x 0.33 cm
(2.0 x 2.0 x 0.13 in.)
- Weight
- 13.61 g
(0.03 lb)
Accessories
(4)27483
End Cap and Separator for 27480 or 27481 DIN-Rail Connector
Orderable30357

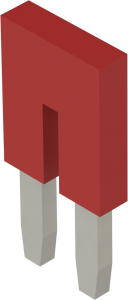

2-Position Horizontal Jumper for 28374 or 33251 DIN-Rail Connector
Orderable31640
20-Position (Trimmable) Horizontal Jumper for 28374 or 33251 DIN-Rail Connector
Orderable29506
DIN-Rail Connector 72 Blank Label Inserts for 28374, 27480, 27481, or 33251
Orderable
