RV50(X) Mounting Kit
32252
OrderableRV50(X) Mounting Kit
Overview
ACC RV50(X) Mounting Kit

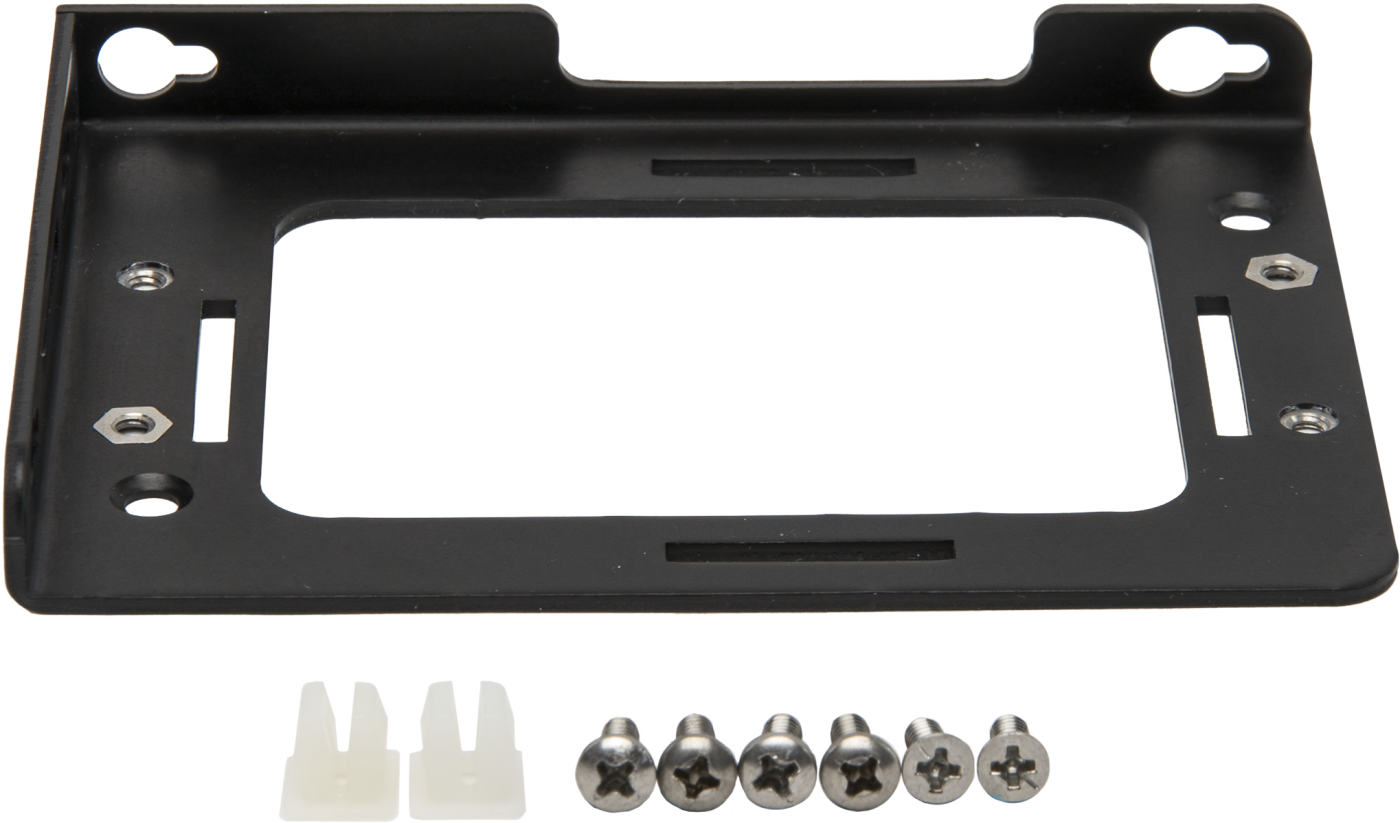

The 32252 RV50(X) Mounting Kit provides a convenient way to mount a Sierra Wireless Airlink RV50(X) Cellular Gateway to the backplate of a Campbell Scientific enclosure. The mount attaches to the RV50(X) using two screws provided in the kit. Alternatively, a 5207 Velcro Strap can be ordered separately and used to strap the RV50(X) to the 32252 mount. The mounting kit provides three basic orientations, including flat, on edge with all connectors pointing up, and on edge with all connectors pointing sideways.
Specifications
- Bracket Material
- 0.2 cm (0.08 in.) aluminum, black anodize
- Screws for Securing Bracket to RV50(X)
- #6-32 x 0.375 in. pan head Phillips
(pn 505)
- Screws for Securing Bracket on Edge to Backplate
- #6-32 x 0.375 in. pan head Phillips
(pn 505)
- Screws for Securing Bracket Flat to Backplate
- #6-32 x 0.375 in. flat head Phillips 100-degree countersink
(pn 31655)
- Bracket Dimensions
- 12.129 x 8.717 x 1.430 cm
(4.775 x 3.432 x 0.563 in.)
- Weight
- 45.36 g
(0.1 lb)
