32016

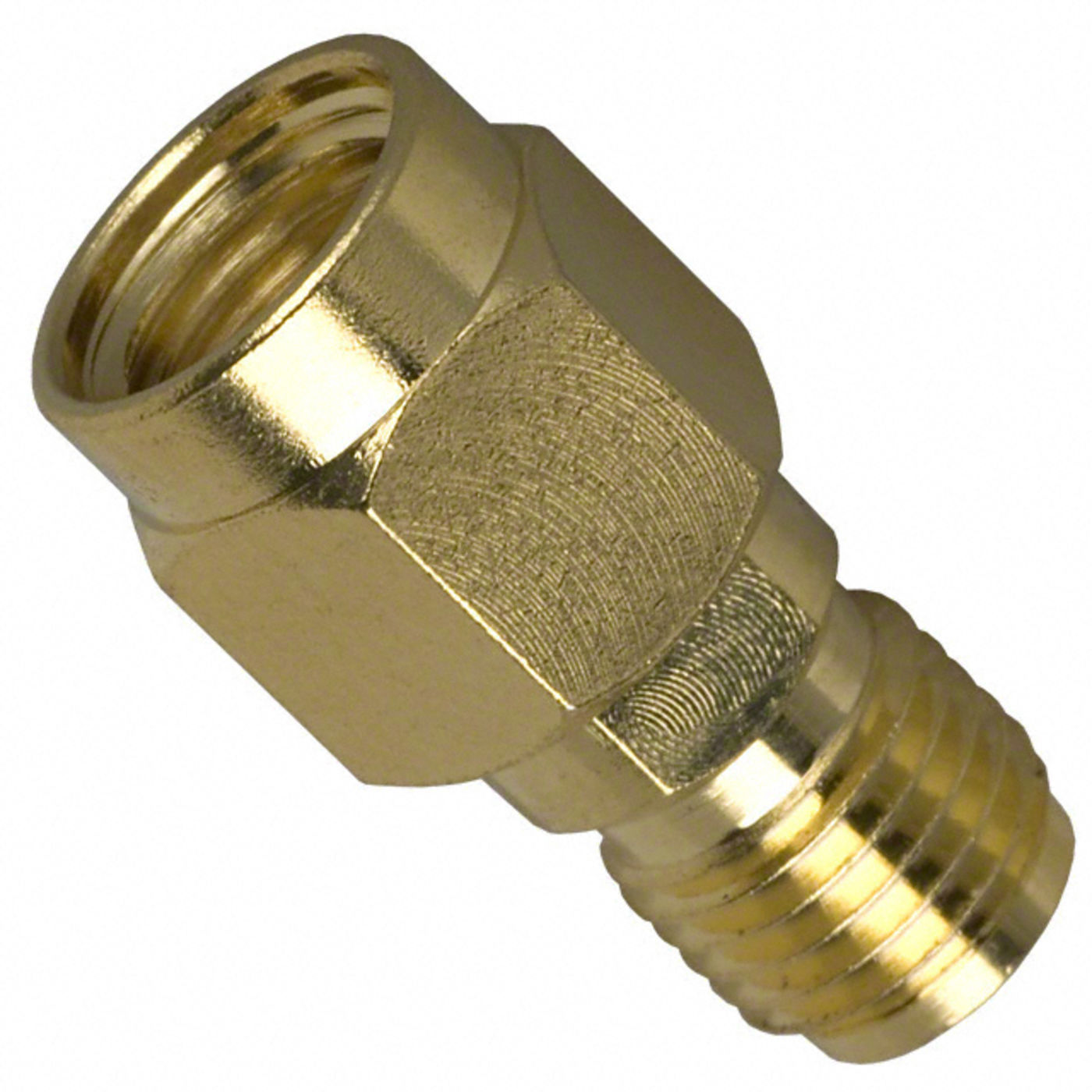

Coaxial Adapter, SMA Jack to RPSMA Plug
32016
OrderableCoaxial Adapter, SMA Jack to RPSMA Plug
Overview
CON COAX Adapter SMA Jack to RPSMA Plug
The 32016 is an adapter with an RPSMA plug on one end and an SMA jack on the other end. It can be used to connect antennas or antenna cables with SMA plugs to a radio with an RPSMA jack, such as the RF451.
Specifications
- Impedance
- 50 ohm
- Contact Pin
- Beryllium copper with gold finish
- Dielectric
- PTFE
- Body
- Brass with gold finish
- Length
- 17 mm
(0.67 in.)
- Weight
- 4.54 g
(0.01 lb)
