RF320-Series Ritron Radio to RF Modem Cable with Frequency Select
31472
OrderableRF320-Series Ritron Radio to RF Modem Cable with Frequency Select
Overview

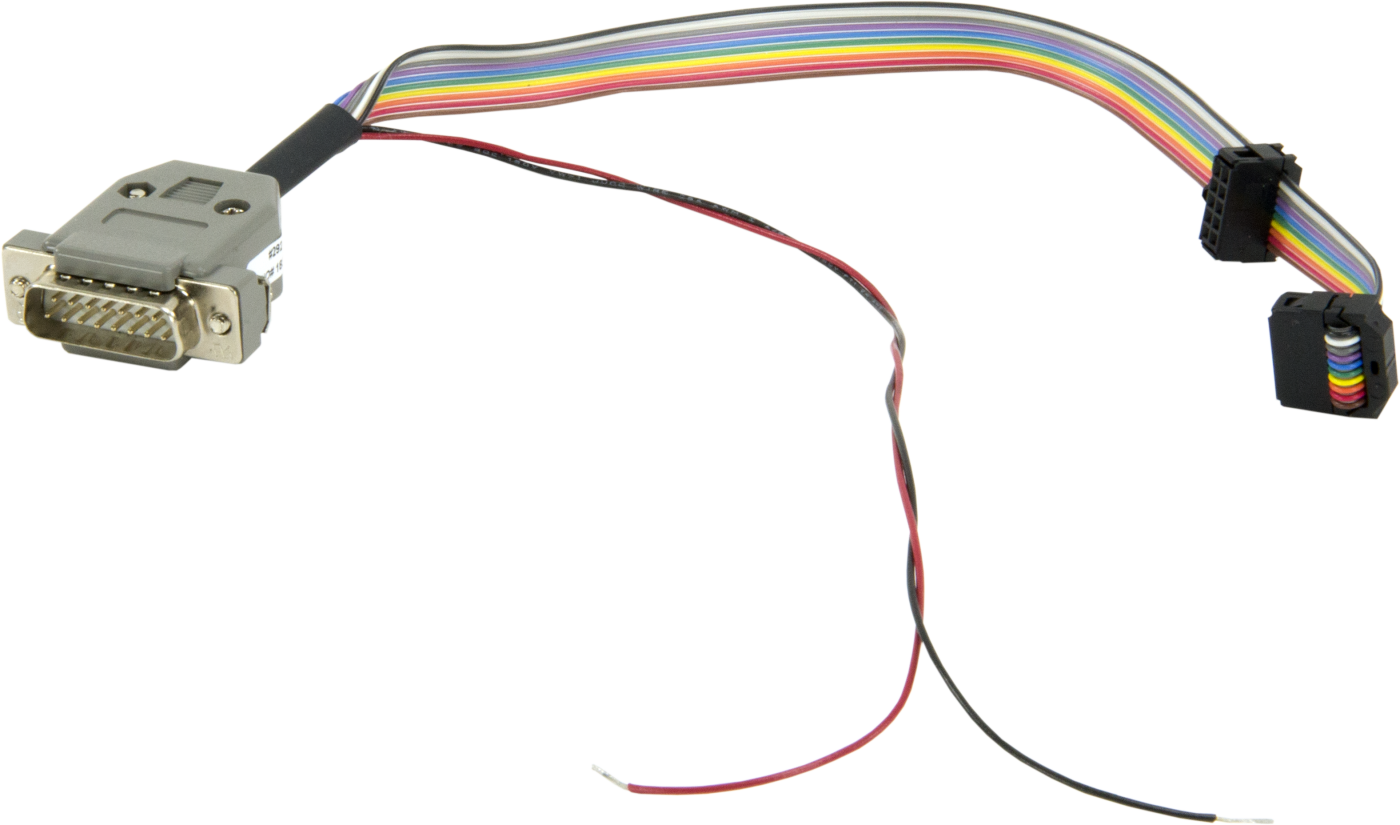

ACC RF320 Series Ritron Radio to RF Modem Cable w/Frequency Select, 0.3m (1ft)
The 31472 is a cable used to connect an RF320-series radio to an RF500M or RF310M. This cable comes with the RF320-series radio ordered using the -M3 option. This cable differs from part 29201 in that it connects the frequency select pin on the modem to the frequency select pin on the radio. This feature is used in "Hybrid ALERT" networks where TD-RF communications occur on channel 7 and ALERT transmissions occur on channel 8.
Technical Description
| DB15 | Square 2x5 | Power |
| 1 | 3 | |
| 6 | Red | |
| 7 | 5 | |
| 8 | 1 | |
| 14 | 9 | |
| 15 | 2,6 | Black |
Specifications
- Connector 1
- DB15, male
- Connector 2
- 10-pin (2x5) square connector, 0.100 inch pitch, female
- Connector 3
- 10-pin (2x5) square connector, 0.100 inch pitch, female
- Ribbon Cable
- 10 conductor
- Radio Power Wires
- 24 AWG, red and black
- Length
- 30.48 cm
(12 in.)
- Weight
- 31.75 g
(0.07 lb)
