Overview

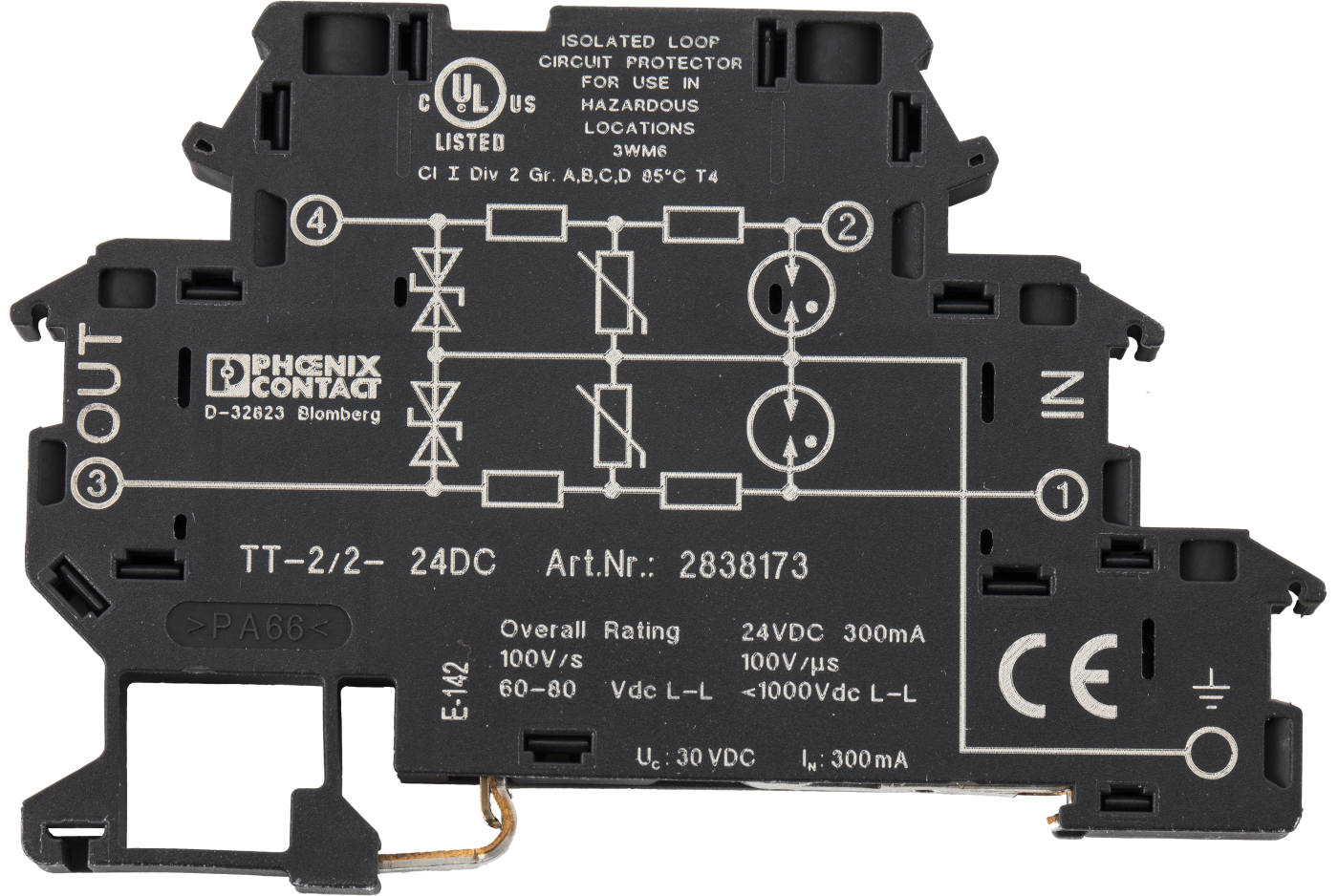

Surge Protector 2-Wire Digital 24Vdc Din Rail Mount PHOENIX 2838173

The 31274 is a 24 V digital surge protector for two digital lines with common reference wires. It is also suitable for dc power ≤ 24 V.

Hardware Type: Surge protection
Why/When to Use: Surge protector for two digital lines with common reference wires.
Also suitable for dc power that is 24 V and below.
Surge Protection Type: Three-stage surge protection
Number of Wires: 2 (24 to 14 AWG)
Maximum Ferrule Size: 14 AWG
Connection Method: Screw
Voltage Rating: Sensor voltage level/power
(maximum 24 Vdc @ 300 mA)
Mounting Width: 6.2 mm
Dimensions: 7.62 x 5.41 x 0.64 cm
(3.0 x 2.13 x 0.25 in.)
Weight: 22.68 g
(0.05 lb)
