31273
OrderableDIN Rail Mountable 2-Wire 6.2 mm 24 V Analog Surge Protector
Overview

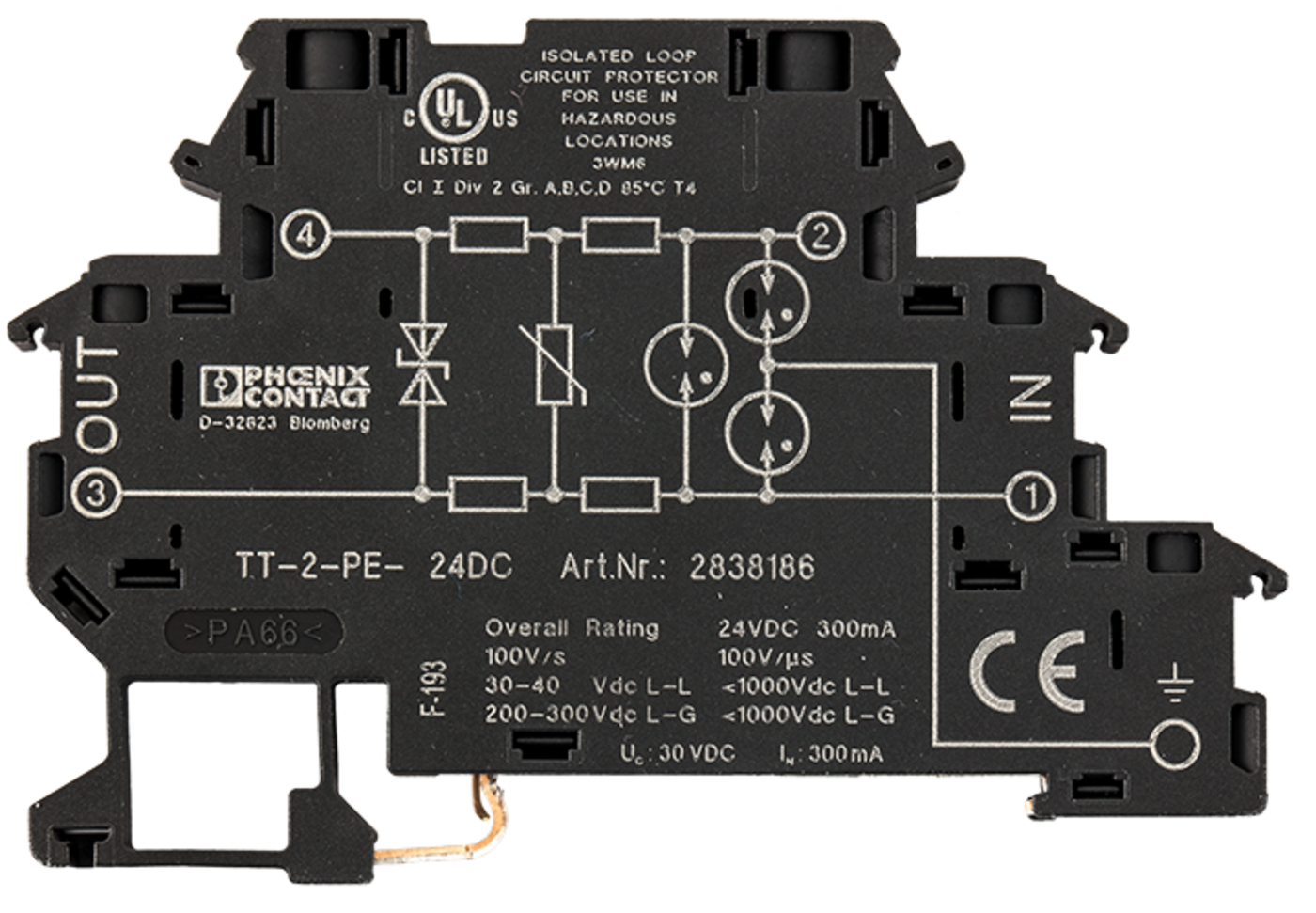

Surge Protector 2-Wire Analog 24Vdc Din Rail Mount PHOENIX 2838186
The 31273 is a 24 V surge protector for two analog lines with common reference wires.
Specifications
- Hardware Type
- Surge protection
- Why/When to Use
- Surge protector for two analog lines with common reference wires
- Surge Protection Type
- Three-stage surge protection
- Number of Wires
- 2 (24 to 14 AWG)
- Maximum Ferrule Size
- 14 AWG
- Connection Method
- Screw
- Voltage Rating
- Sensor voltage level
- Mounting Width
- 6.2 mm
- Dimensions
- 7.62 x 5.41 x 0.64 cm
(3.0 x 2.13 x 0.25 in.)
- Weight
- 22.68 g
(0.05 lb)
