Orderable27 dBi GPS Antenna with 3 V Magnetic Mount and SMA Connector
Overview

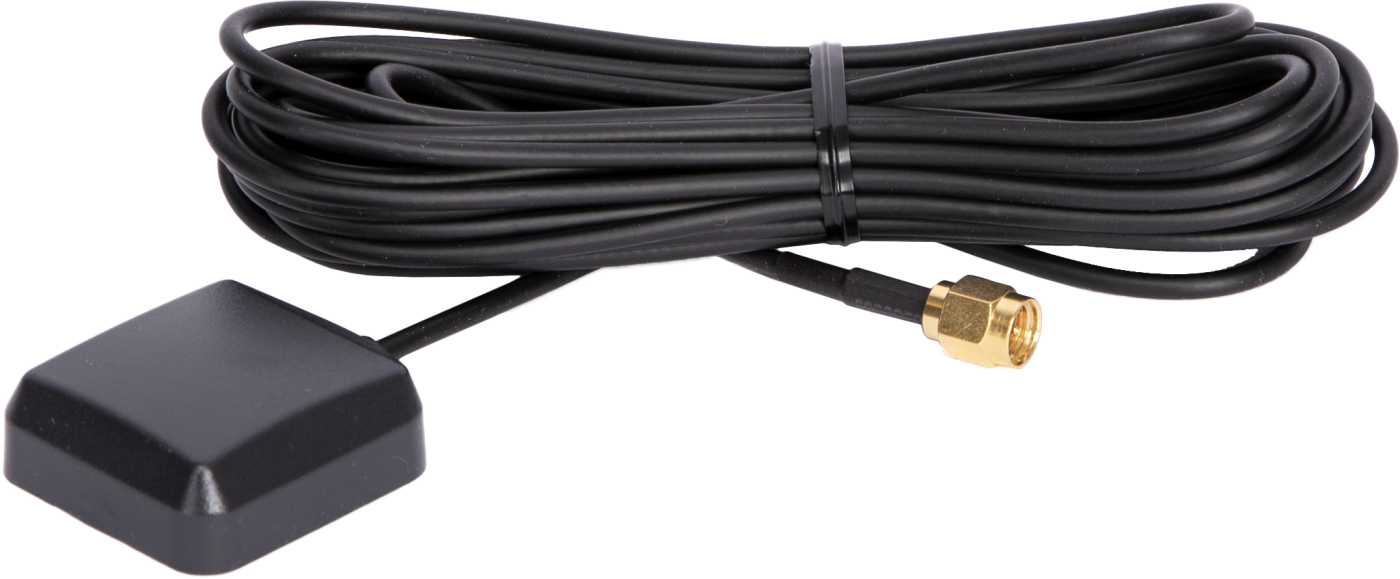

The 31182 is a magnetic mount GPS patch antenna. It is typically used where GPS reception is readily available and concern is low for snow buildup completely covering the antenna. The 31182 is also commonly used in cost-sensitive applications or applications that require a small-sized, low-profile antenna. This antenna connects to a GPS receiver with SMA connector, such as that found in the AL200, LS300G, TX320, and WEATHERPAK M. The antenna package is waterproof and corrosion resistant. The 31182 conveniently mounts to any magnetic surface, which includes the 30626 and CM235 mounts offered by Campbell Scientific.
Specifications
- Output Connector
- SMA connector termination
- Operating Temperature Range
- -40° to +85°C
- Humidity
- 20 to 95%
- Frequency Range
- 1575.42 MHz
- Gain
- Up to 27 dBi @ 25°C
(typical)
- Output Impedance
- 50 Ω
- LNA Noise Figure
- As low as 1.5 db
(@ 25°C)
- Supply Voltage
- 3 V ±0.3 V
- Power Consumption
- 20 mA
(maximum)
- Power Consumption
- 15 mA
(typical)
- Cable
- 5 m (16.4 ft) of RG-174 coaxial cable
- Dimensions
- 37.4 x 34 x 12.9 mm
(1.47 x 1.34 x 0.51 in.)
- Weight
- 25 g
(0.88 oz) without cable
