30988
LS300 Mounting Kit
30988
End of lifeLS300 Mounting Kit
Pricing
- Model:
- 30988
- Item Number:
- 30988
- Warranty:
- 1 year
Overview
LS300G Mounting Kit LS300 MOUNTING KIT

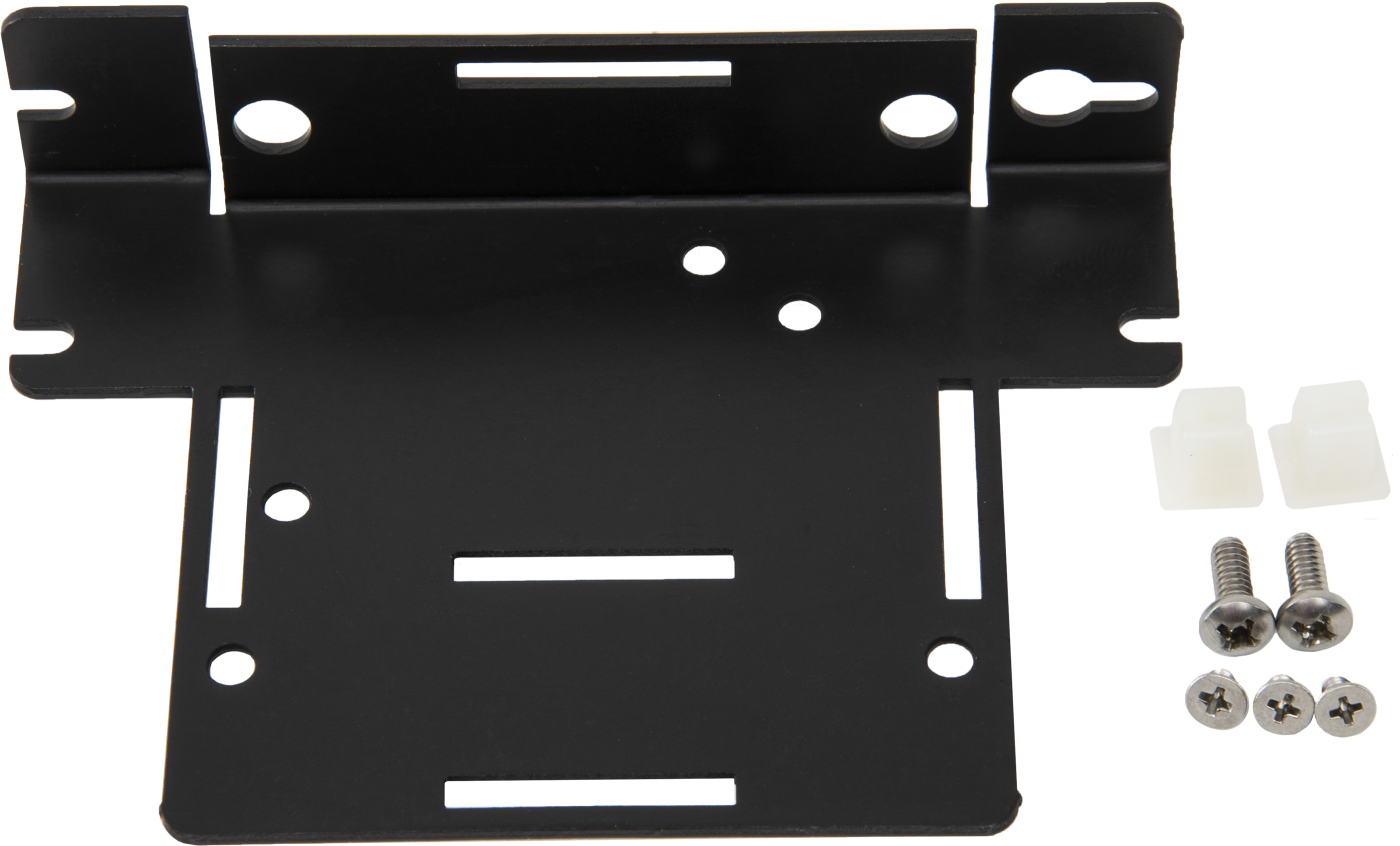

The 30988 LS300 Mounting Kit provides a convenient way to mount a Sierra Wireless Airlink LS300 Cellular Gateway to the backplate of a Campbell Scientific enclosure. The mount attaches to the LS300 using three screws provided in the kit; the screws insert into the threaded mounting holes already present in the LS300 case. The mounting kit provides three basic orientations including: flat, vertical on edge with Ethernet and antenna connectors pointing up, and vertical on edge with serial and USB connectors pointing up.
Specifications
- Bracket Material
- 1.6 mm (0.063 in.) aluminum, black anodize
- Screws for Securing Bracket to LS300
- 304 stainless-steel Phillips, M3 x 10 mm
- Bracket Dimensions
- 10.92 x 2.32 x 7.78 cm
(4.3 x 0.913 x 3.063 in.)
- Weight
- 45.36 g
(0.1 lb)
