End of life9522B Iridium Satellite Transceiver with SIM Card
Pricing
- Model:
- 30693
- Item Number:
- 30693
- Warranty:
- 1 year
Overview

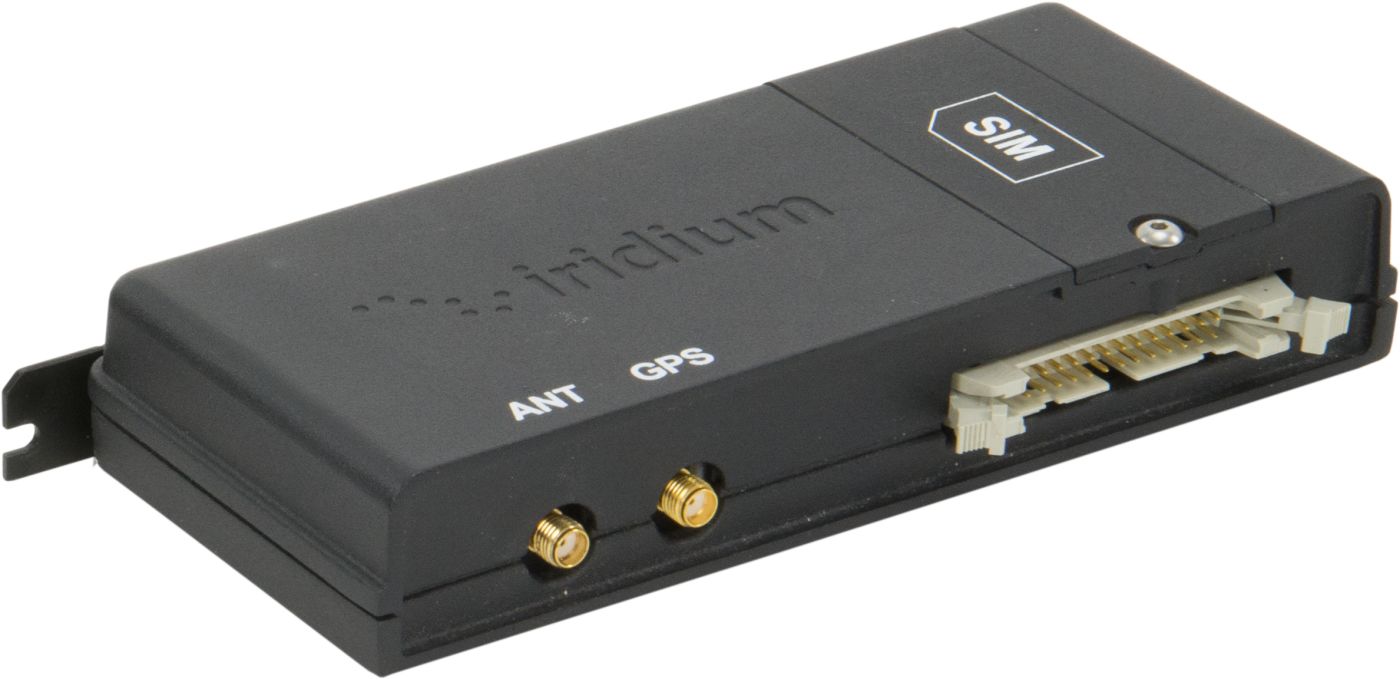

The 30693 is an Iridium 9522B satellite transceiver, providing global two-way communications to a remote station over the Iridium satellite network. The device ships with a SIM card ready for activation and a mounting bracket. A COM9522B modem interface is used to easily connect this transceiver to a computer or Campbell Scientific data logger.
The 9522B may be ordered individually or preferably as part of the IRIDIUM9522B Satellite Modem and Interface Kit.
Key Advantages
Technical Description
This device is a component of the IRIDIUM9522B Satellite Modem and Interface Kit.
A COM9522B Iridium Satellite Modem Interface is used to supply power to this device and to connect it to a computer or data logger.
Specifications
- Operating Temperature Range
- -30° to +70°C
- Operating Humidity
- 25% to 75%
- Storage Temperature Range
- -40° to +85°C
- Storage Humidity
- 93%
(max)
- Dimensions
- 16.2 x 8.1 x 2.8 cm
(6.4 x 3.2 x 1.1 in.)
- Weight
- ~420 g
(14.8 oz)
Power Supply
- Off State
- 20 uA
- Transmission Current
- 500 mA @ 12 Vdc
- Operating
- 4 to 32 Vdc
(333 mA @12 Vdc)
- Standby
- 125 mA @ 12 Vdc
RF Interface
- Frequency Range
- 1616 to 1626.5 MHz
- Duplexing Method
- TDD
(Time Domain Duplex)
- Oscillator Stability
- ±1.5 ppm
- Input/Output Impedance
- 50 ohm
- Multiplexing Method
- TDMA/FDMA
