30217
IRGASON Sensor Head Mounting Kit for FWTC
30217
OrderableIRGASON Sensor Head Mounting Kit for FWTC
Overview

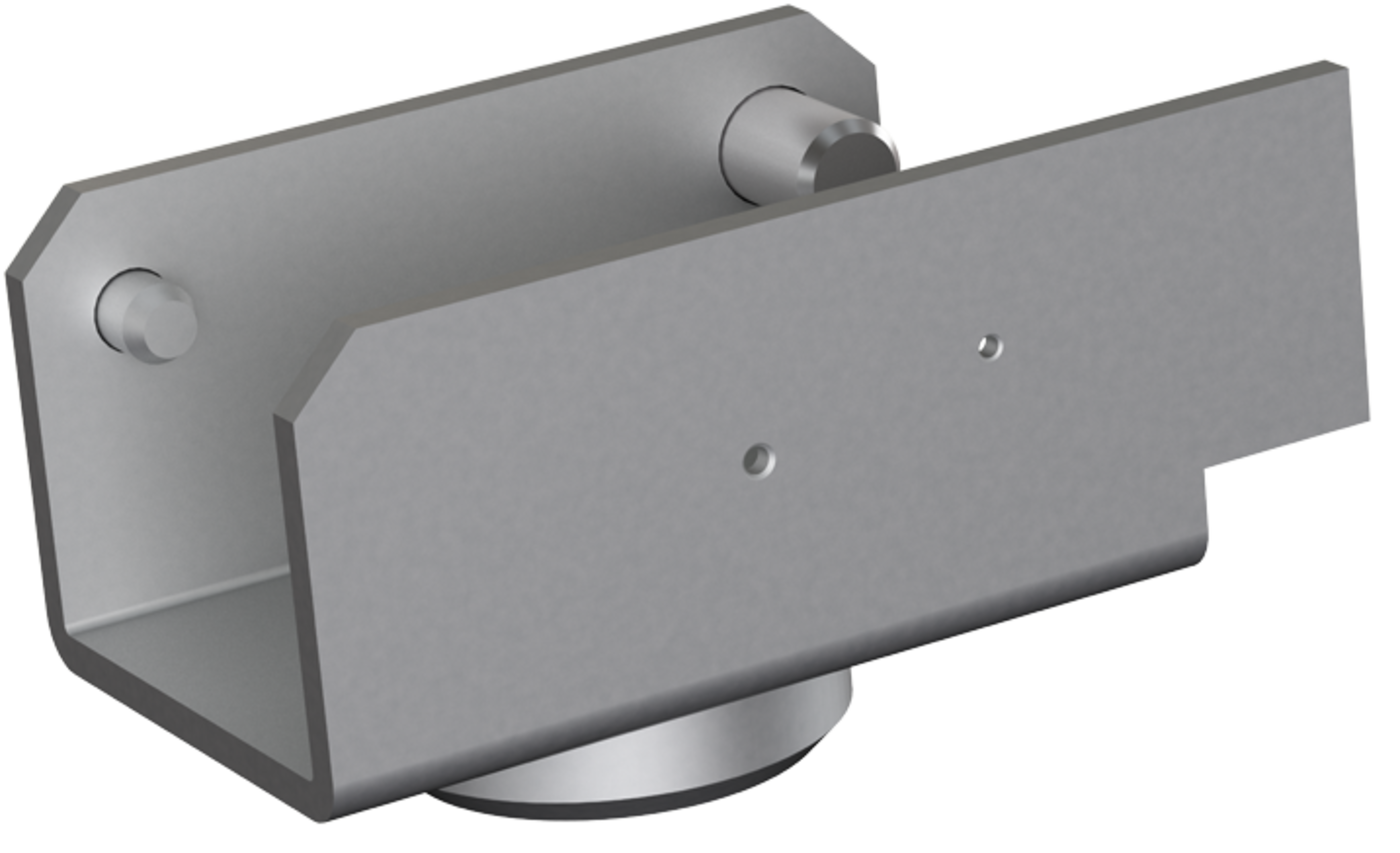

Replacement IRGASON Sensor Head Mounting Kit for FWTC
The 30217 is a kit that allows a fine-wire thermocouple to be mounted alongside an IRGASON. The kit includes a mounting bracket that bolts directly to the CM250 Leveling Mount. The 30217 replaces the 27497 mounting bracket that is included with the IRGASON. The FW05 fine-wire thermocouple, 10080 TC cover, and FWC-L cable are sold separately as accessories. (For more information, see the Ordering information area.)
Specifications
- Dimensions
- 9.27 x 5.08 x 5.08 cm
(3.65 x 2.0 x 2.0 in.)
- Weight
- 136.08 g
(0.3 lb)
