30139

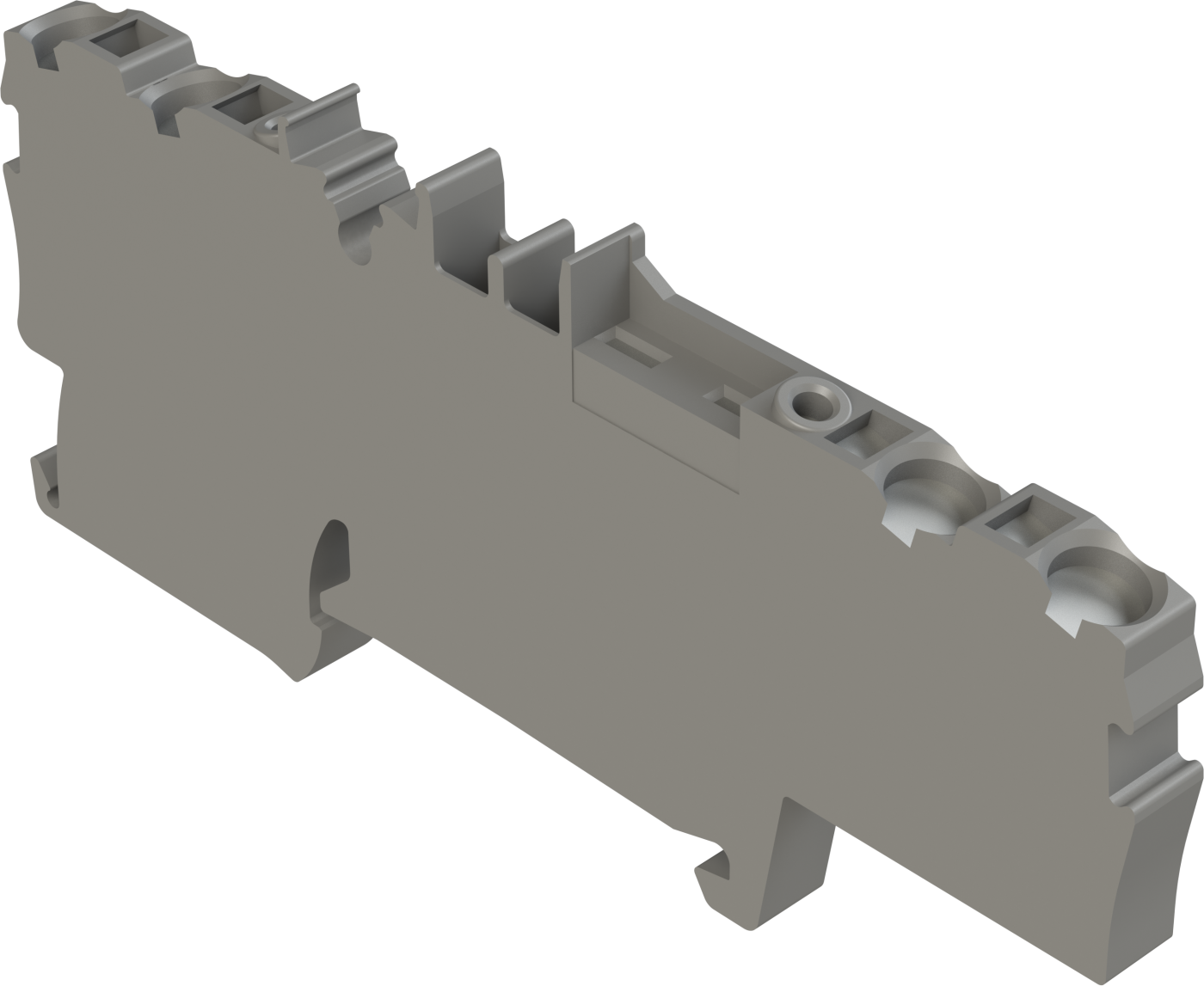

OrderableDIN Rail Mountable 4-Wire 5.2 mm Blade-Type Fuse Holder Terminal Block
Overview
CON DIN TRM Spring 4-Trm 1-Lvl 1-Circ 12-22 AWG Gray Fuse WAGO 2002-1881
The 30139 fuse block is used with common Mini-Fit automotive fuses. The 30139 is a four-wire, 5.2-mm blade-type fuse holder. It has one input, one unprotected output, and two protected outputs. It can accommodate Mini-Fit automotive-style bladed fuses, up to a maximum of 10 A. Fuse holders are commonly used to fuse an output of a battery or a charge source, as well as add protection to powered sensors. Moreover, fuse holders are ideal for creating multiple legs for power with different current requirements.
Specifications
- Hardware Type
- Fuse holder for Mini-Fit automotive fuses
- Why/When to Use
- Fuse/distribution block with one input, one unprotected output, and two protected outputs
- Layout
- Single tier, 4-point
- Number of Wires
- 4 (22 to 12 AWG)
- Maximum Ferrule Size
- 16 AWG
- Connection Method
- Spring clamp
- Mounting Width
- 5.2 mm
- Dimensions
- 8.89 x 3.18 x .033 cm
(3.5 x 1.25 x 0.13 in.)
- Weight
- 9.07 g
(0.02 lb)
