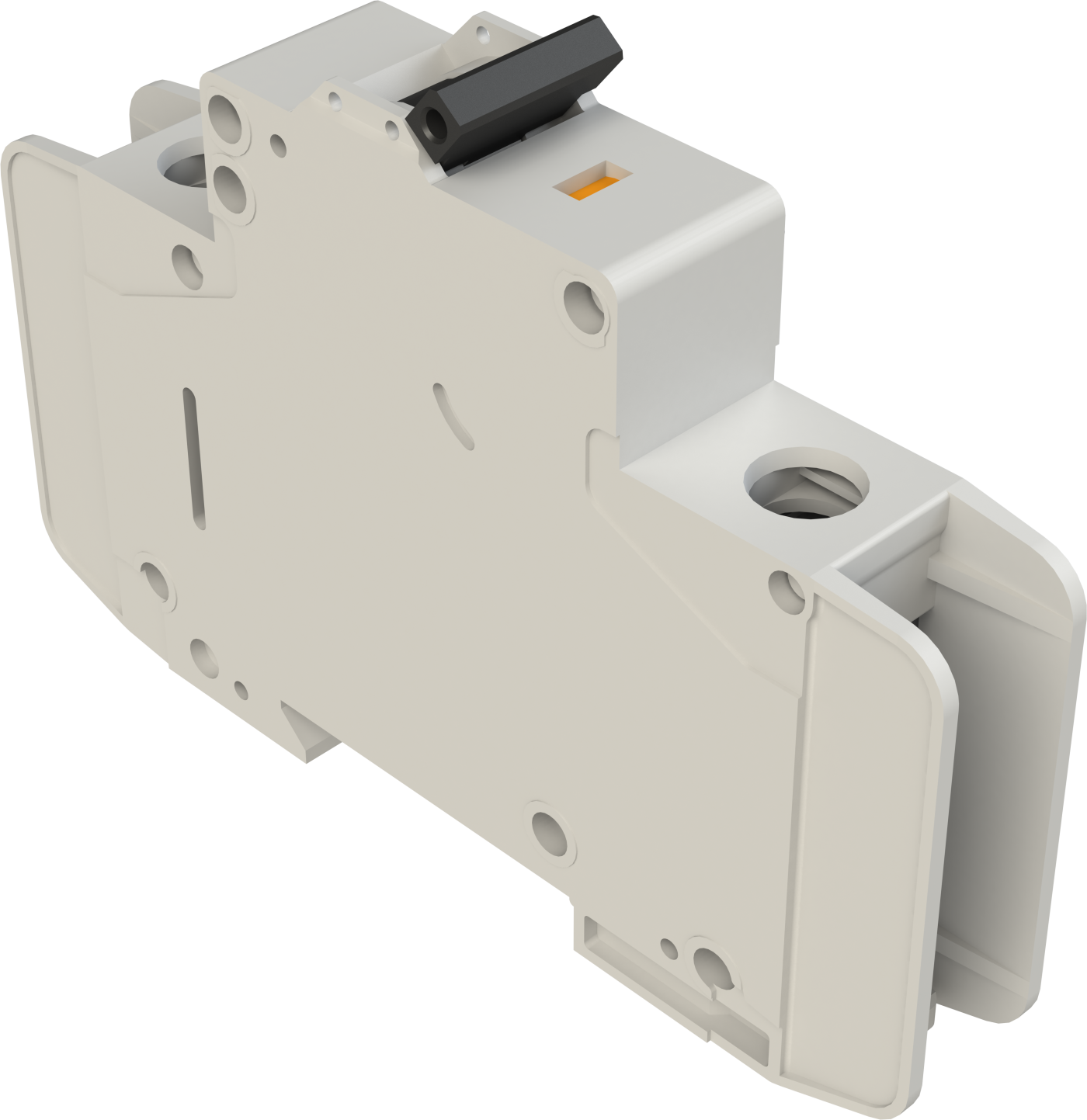

30088
OrderableDIN Rail Mountable 15 A Circuit Breaker, Single Pole 17.7 mm UL489
Overview
Power Circuit Breaker 15A 1P C-Curve UL489 Din Rail Mount
The 30088 is typically used to protect the incoming ac power with a maximum of 15 A. It is useful for creating a branch circuit for 120 to 277 Vac. This circuit breaker has the ability to be reset in the event of an overcurrent anomaly, and it is useful for quickly disabling power to a station.
Specifications
- Hardware Type
- UL489 circuit breaker
- Why/When to Use
- Typically used to protect incoming ac power.
Useful for creating a branch circuit for 120 to 277 Vac or 100 Vdc minimum.
- Breaker Type
- Single pole/single throw
- Wire Size
- 20 to 6 AWG
- Maximum Ferrule Size
- 12 AWG
- Amperage
- 15 A
- Mounting Width
- 17.7 mm
- Dimensions
- 10.8 x 7.62 x 2.54 cm
(4.25 x 3.0 x 1.0 in.)
- Weight
- 127.01 g
(0.28 lb)
