27476

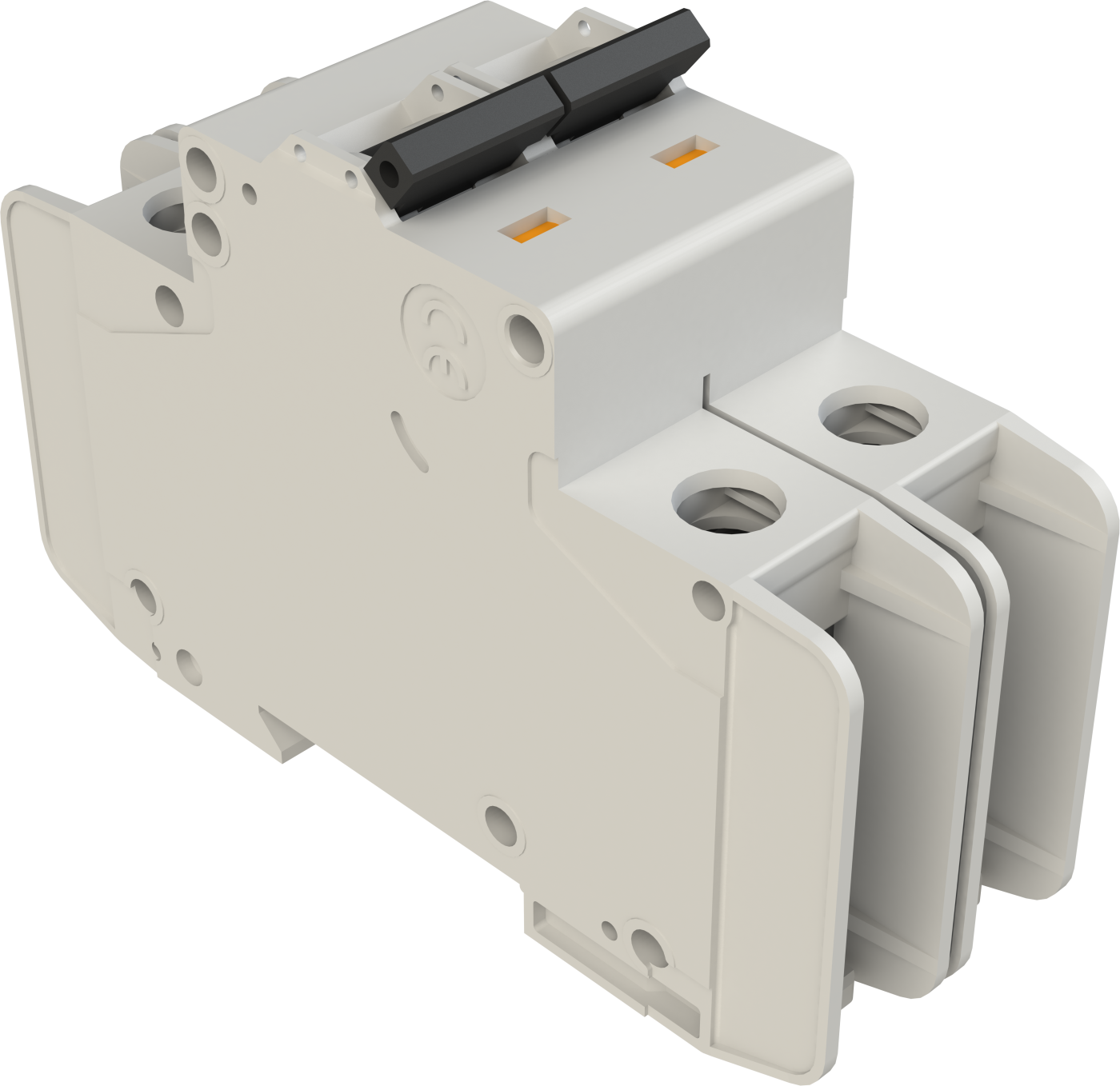

OrderableDIN Rail Mountable 4 A Circuit Breaker, Double Pole 35.4 mm UL489
Overview
Power Circuit Breaker 4A 2P B-Curve UL489 Din Rail Mount
The 27476 is typically used in-line between a battery and a charge regulator with a maximum of 4 A. The branch circuit protector is rated at 120 to 277 Vac.
Specifications
- Hardware Type
- UL489 circuit breaker
- Why/When to Use
- Typically used in-line between battery and charge regulator.
Branch circuit protector rated at 120 to 277 Vac or 100 Vdc maximum.
- Breaker Type
- Double pole/single throw
- Wire Size
- 20 to 6 AWG
- Maximum Ferrule Size
- 12 AWG
- Amperage
- 4 A
- Mounting Width
- 35.4 mm
(1.4 in.)
- Dimensions
- 10.16 x 8.26 x 3.81 cm
(4.0 x 3.25 x 1.5 in.)
- Weight
- 267.62 g
(0.59 lb)
