25458
25458
Retired5 in. DIN Rail Mounting Kit
Pricing
- Model:
- 25458
- Item Number:
- 25458
- Warranty:
- 1 year
Overview

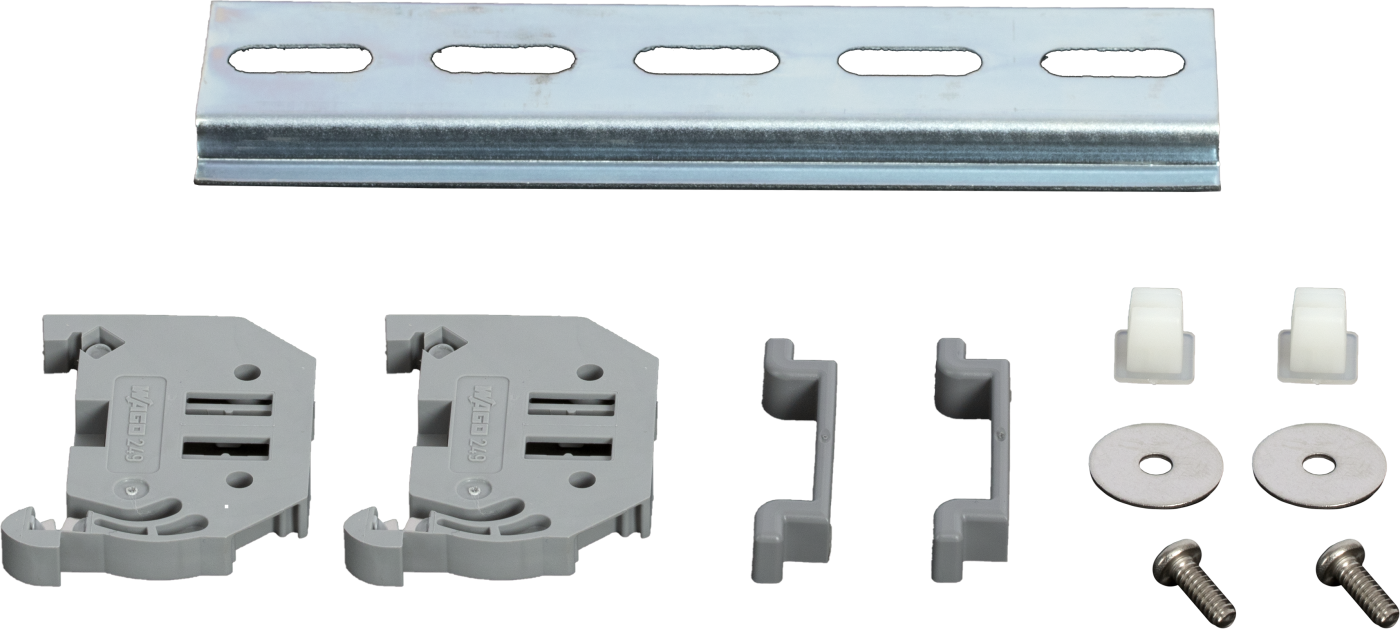

The 25458 can facilitate wiring when many wires need to be connected to one terminal. This kit contains one 15906 5 in. DIN Rail Mounting Bracket, two 505 screws, two 6044 grommets, and two 15908 DIN Rail Stoppers. A complete configuration would also include terminal strips, end plates, and jumpers.
Technical Description
The 25458 can facilitate wiring when many wires need to be connected to one terminal. This kit contains one 15906 5-inch DIN Rail Mounting Bracket, two 505 screws, two 6044 grommets, and two 15908 DIN Rail Stoppers. A complete configuration will also include pn 15920 Terminal Strips, pn 15907 End Plates, and pn 15909 Jumpers (see Ordering Info). The stoppers, terminal strips, and end plates are mounted onto the DIN rail bracket. The DIN rail bracket is mounted to an enclosure backplate using the kit’s screws and grommets.
The 25458 is often used in RWIS applications, and is ideal for connecting multiple 4 to 20 mA sensors to a CR200(X)-series datalogger.
Specifications
- Hardware Type
- DIN rail mounting kit
- Why/When to Use
- For connecting many wires to one terminal.
- Mounting Bracket Length
- 12.7 cm
(5 in.)
- Mounting Space to Hold Parts
- 10.1 cm
(3.98 in.) Can connect up to 33 items depending on width of items.
- Weight
- 68.04 g
(0.15 lb)
