21330

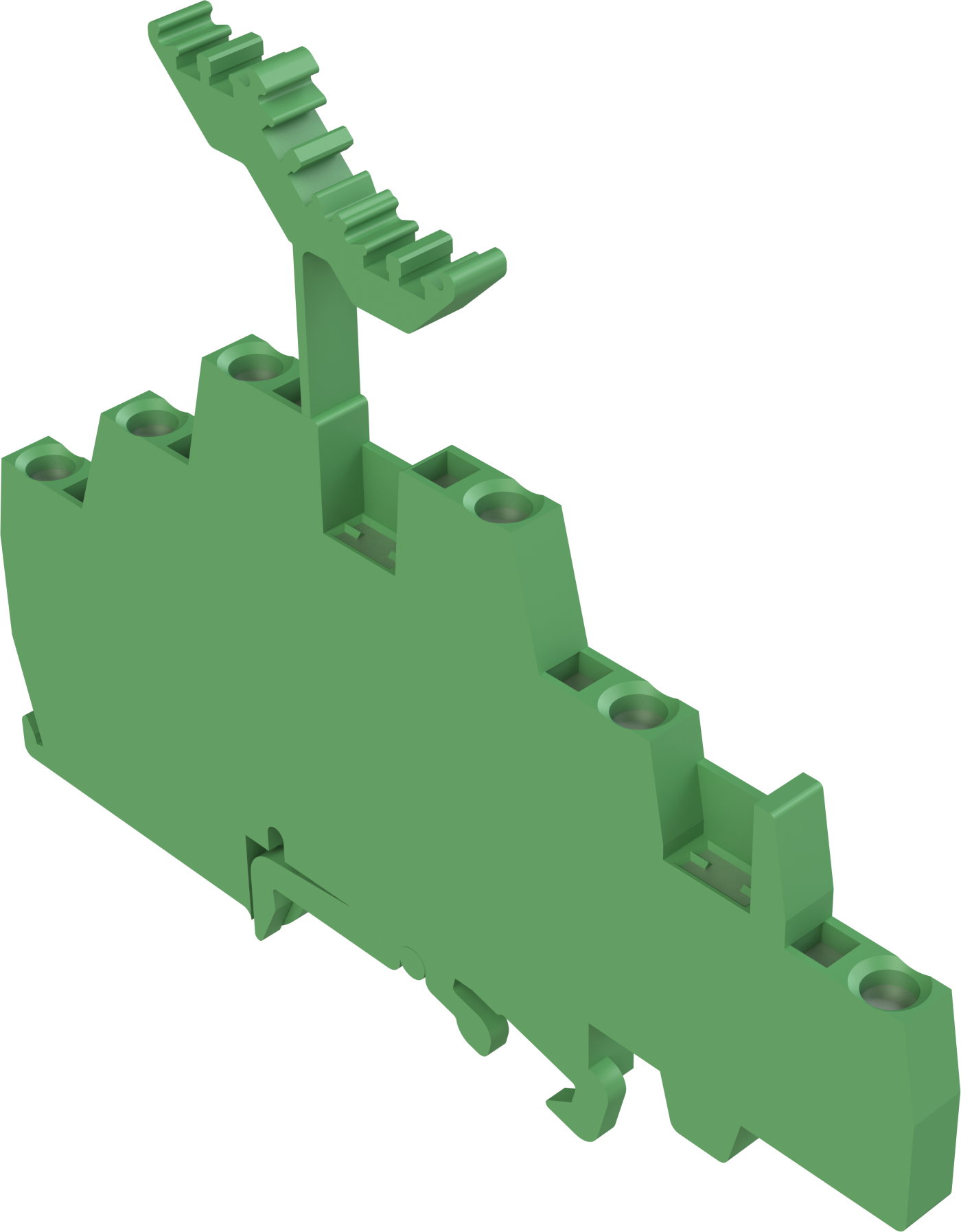

OrderableDIN Rail Mountable 6-Wire 5 mm Spring-Loaded 3-Tier Grounded Connector
Overview
The 21330 is a DIN rail mountable terminal connector that can be used between sensors (or other devices) and a data logger. The 21330 is a six-wire 5-mm spring-loaded three-tier connector that is grounded to the DIN rail mounting bracket it is attached to. An 8125 flat-bladed screwdriver is used to open the spring-cages for wire entry.
Specifications
- Hardware Type
- Terminal block
- Why/When to Use
- Sensor connections; tiers allow multiple connections to be stacked to save horizontal space inside enclosure.
- Grounded
- Yes
- Number of Wires
- 6 (28 to 12 AWG)
- Connection Method
- Spring clamp
- Maximum Ferrule Size
- 18 AWG
- Mounting Width
- 5 mm
- Dimensions
- 28.58 x 13.03 x 6.35 cm
(11.25 x 5.13 x 2.5 in.)
- Weight
- 1.01 kg
(2.22 lb)
Accessories
(5)21333
End Cap and Separator for 21329 or 21330 DIN-Rail Connector
Orderable21331
Vertical Jumper for 21329 or 21330 DIN-Rail Connector
Orderable15909
Horizontal Jumper for DIN Rail Connector
Orderable22190
DIN-Rail Connector Number Block Label 1 to 99 for 15920, 21329, or 21330
Orderable30405
DIN-Rail Connector Number Block Label 100 to 199 for 15920, 21329, or 21330
Retired
