Stainless-Steel Temperature Probe for Harsh Environments

109SS

OrderableConfigurable

Stainless-Steel Temperature Probe for Harsh Environments

Stainless-steel thermistor that provides a rugged, accurate, fast response with a wide temperature range.

Pricing

Configuration

w/3m (10ft) per Sensor -PF w/Ferrules on Wires-3m
109SS-L Temp Probe (-40 to +70C) w/5m per Sensor -PF w/ Ferrules on Wires109SS-5m
109SS-L Temp Probe (-40 to +70C) w/10m per Sensor -PF w/ Ferrules on Wires109SS-10m
109SS-L Temp Probe (-40 to +70C) w/20m per Sensor -PF w/ Ferrules on Wires109SS-20m
109SS-L Temp Probe (-40 to +70C) w/30m per Sensor -PF w/ Ferrules on Wires109SS-30m

Qty

Select a configuration to add to your quote

Model:: 109SS
Item Number:: 45015
Warranty:: 1 year
Lead time:: 14 days

Overview

Temperature Sensor (-40 to +70C)

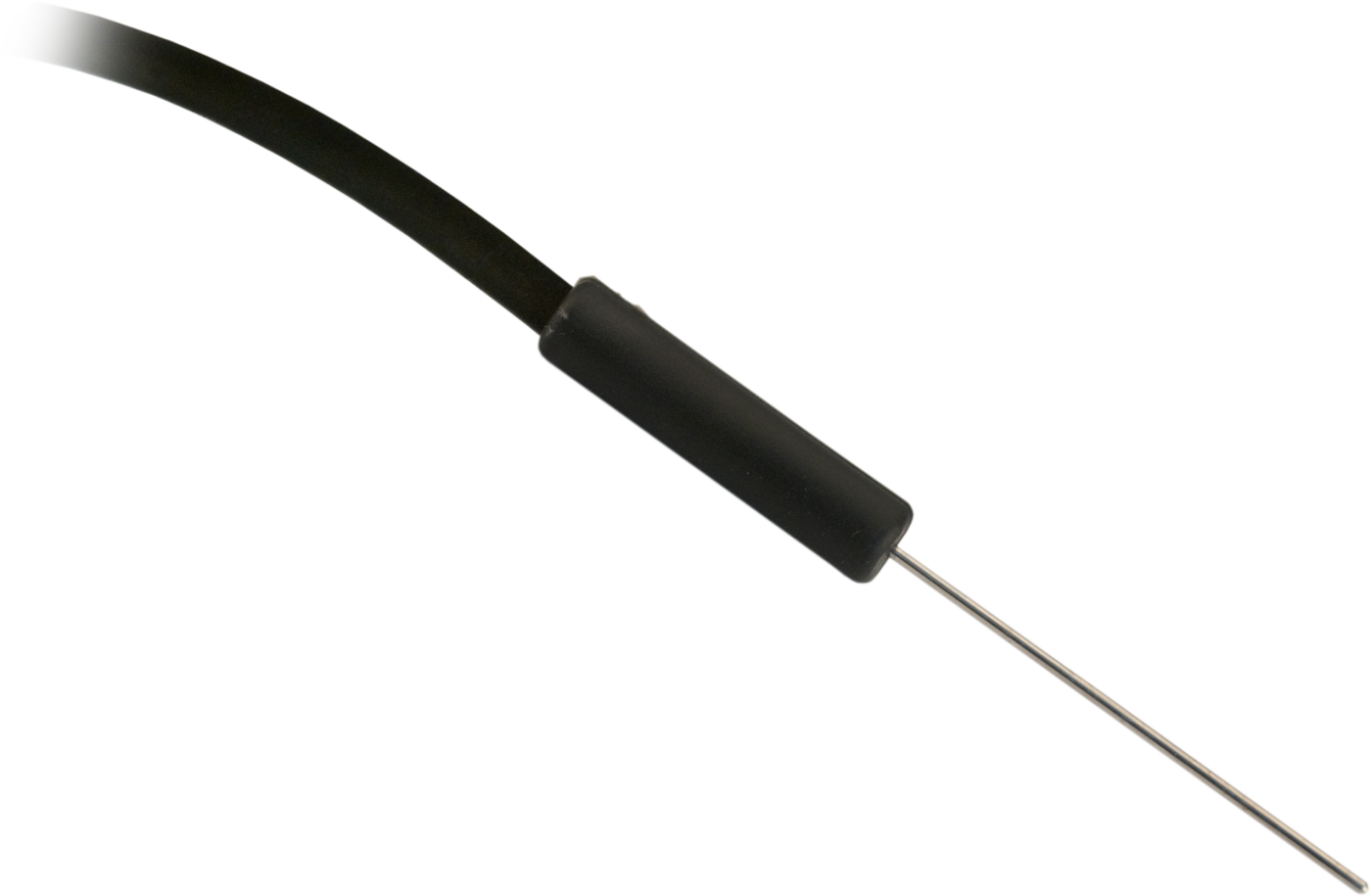

The 109SS is a rugged, accurate probe that measures soil or water temperature from -40° to +70°C. The 109SS consists of a thermistor encased in a sheath made from grade 316L stainless steel. The rugged stainless-steel sheath protects the thermistor, allowing you to bury or submerge the 109SS in harsh, corrosive environments. This probe also has a fast time response, and it can be easily interfaced with our data loggers.

Key Advantages

Rugged, Accurate, Versatile
Can be used in a variety of applications

Technical Description

The 109SS thermistor can survive temperatures up to 100°C, but the overmolded joint and cable should not be exposed to temperatures hotter than +70°C.

Water Temperature

The sensor can be submerged to 46 m (150 ft) or 63 psi. Please note that the 109SS is not weighted. Therefore, the installer should either add a weighting system or secure the sensor to a fixed, submerged object, such as a piling.

Soil Temperature

The 109SS is suitable for shallow burial only. Placement of the sensor’s cable inside a rugged conduit may be advisable for long cable runs—especially in locations subject to digging, mowing, traffic, use of power tools, or lightning strikes.

Benefits

Designed for harsh, corrosive environments
Fast response time
Wide temperature measurement range
Easy to install or remove
Compatible with most of our current and retired data loggers

Specifications

Output: Analog
Operating Temperature Range: -40° to +70°C
Accuracy: Note: Overall probe accuracy is a combination of thermistor interchangeability, bridge-resistor accuracy, and error of the Steinhart-Hart equation. Interchangeability is the principle component error. If needed, an estimate of the interchangeability error for 0 to 50°C, that can be used as the Offset parameter of the Therm109() instruction, can be determined with a 1-point or 2-point calibration.
Accuracy: ±0.60°C
(-40 to +70°C)
Accuracy: ±0.49°C
(-20 to +70°C)
Maximum Submergence: 45.7 m (150 ft) or 434 kPa (63 psi)
Temperature Measurement Range: -40° to +70°C
Thermistor Temperature Survival Range: -50° to +100°C
Overmolded Joint and Cable Temperature Survival Range: -50° to +70°C
Interchangeability Error: ±0.6°C tolerance
(-40°C)
Interchangeability Error: ±0.38°C tolerance
(0°C)
Interchangeability Error: ±0.1°C tolerance
(25°C)
Interchangeability Error: ±0.3°C tolerance
(50°C)
Interchangeability Error: ±0.4°C tolerance
(70°C)
Steinhart-Hart Equation Error: ≤ 0.02°C
(-40°)
Time Constant in Air: 31 s
(still air)
Time Constant in Air: 7.5 s
(air @ 3 m/s)
Time Constant in Air: 0.5 s
(antifreeze/water rolling)
Sensor Description: Micro-BetaCHIP Probe 10K3MCD1, 0.5 mm (0.018 in.) diameter, 10 kohm at 25°C
Cable Description: 0.56 cm
(0.22 in.) diameter with Santoprene jacket
Cable/Probe Connection: “ATUM” heat shrink, “Macromelt” overmolded joint
Stainless-Steel Sheath Diameter: 0.16 cm
(0.063 in.)
Stainless-Steel Sheath Length: 5.84 cm
(2.3 in.)
Overmolded Joint Diameter: 1.02 cm
(0.40 in.)
Overmolded Joint Length: 4.24 cm
(1.67 in.)
Weight: 0.1 kg with 3.2 m cable
(0.2 lb with 10.5 ft cable)
