10871
10871

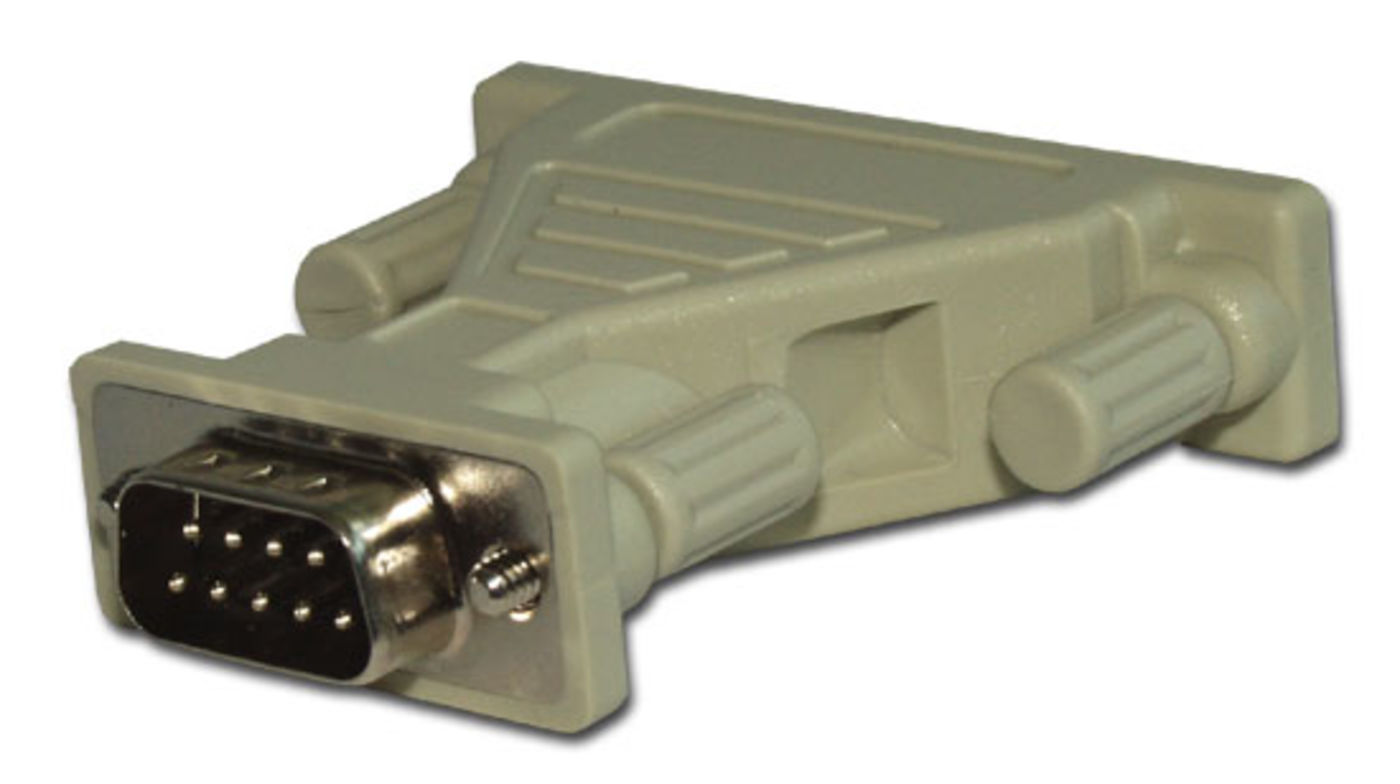

Limited availabilityRS-232 Data Cable Adapter, DB9 Pin (Male) to DB25 Socket (Female)
Overview
The 10871 provides a 9-pin pin (male) connector on one end and a 25-pin socket (female) connector on the other end. Typically, this serial adapter is used to connect the data logger's 9-pin RS-232 port to a PC's 25-pin RS-232 port. As the interface is rigid, either a 25-pin to 25-pin or a 9-pin to 9-pin cable is generally used to complete the connection between the data logger and computer's serial ports.
Technical Description
The 10871 provides a 9-pin pin (male) connector on one end and a 25-pin socket (female) connector on the other end. Typically, this serial adapter is used to connect the data logger's 9-pin RS-232 port to a PC's 25-pin RS-232 port. As the interface is rigid, either a 25-pin to 25-pin or a 9-pin to 9-pin cable is generally used to complete the connection between the data logger and computer's serial ports.
The 10871 was supplied with the now retired PST3 and PST8 systems.
Benefits
- Commonly used with CR1000, CR3000, CR800, CR850, CR5000, and CR200-series dataloggers
- Could also be used for other devices with a 9-pin serial port that will be connected to a computer with a 25-pin serial port
Specifications
- Connectors
- 9-pin pin (male), 25-pin socket (female)
- Dimensions
- 4.6 x 5.6 x 1.5 cm
(1.8 x 2.2 x 0.6 in.)
- Weight
- 45 g
(2 oz)
