107-LC
107-LC
RetiredConfigurableTemperature Probe for ET or MetData
Pricing
- Model:
- 107-LC
- Item Number:
- 10098
- Warranty:
- 1 year
- Lead time:
- 21 days
Overview

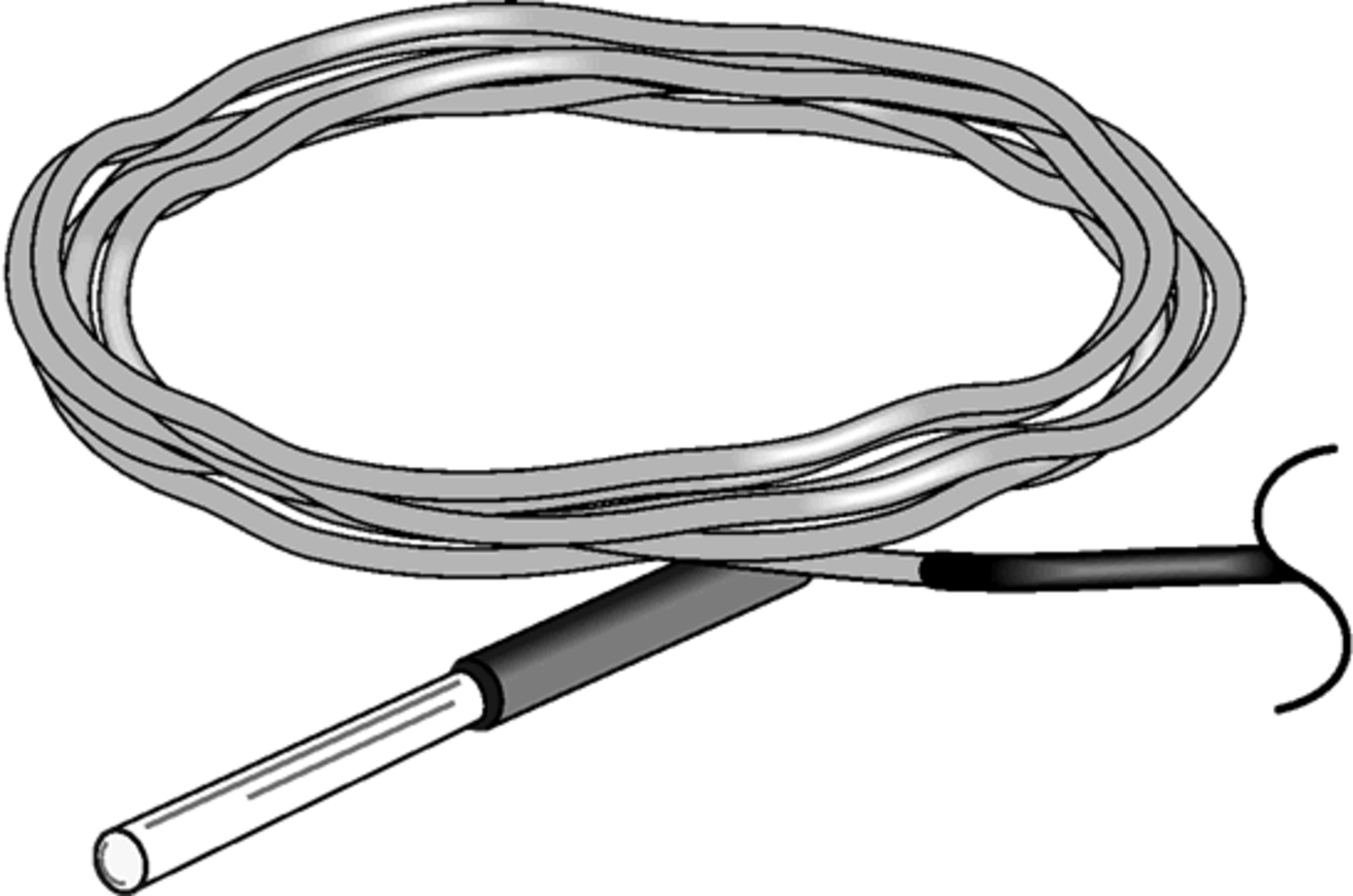

The 107-LC consists of a thermistor encapsulated in an epoxy-filled aluminum housing. It measures the range of -35° to +50°C; to measure the -5° to +95°C temperature range, see the 108-LC probe.
Key Advantages
Can be used in a variety of applications
Technical Description
The 107-LC consists of a thermistor encapsulated in an epoxy-filled aluminum housing. Its cable terminates in a connector that attaches to the ET107 Weather Station, ET106 Weather Station (retired), or MetData1 Weather Station (retired). The 107-LC measures the range of -35° to +50°C; to measure the -5° to +95°C temperature range, see the 108-LC probe.
Soil Temperature
The 107-LC is suitable for shallow burial only. It should be placed horizontally at the desired measurement depth to avoid thermal conduction from the surface to the thermistor. Placement of the sensor cable inside a rugged conduit may be advisable for long cable runs, especially in locations subject to digging/mowing, traffic, use of power tools, or lightning strikes.
Water Temperature
p>The 107-LC can be submerged to 50 feet. Please note that the probe is not weighted. Therefore, the installer should either add a weighting system or secure the probe to a fixed, submerged object, such as a piling.
Benefits
- Versatile product—measures air, soil, or water temperature
- Easy to install on the ET107 Weather Station
- Durable
Specifications
- Sensor
- BetaTherm 100K6A1IA Thermistor
- Tolerance
- ±0.2°C
(over 0° to 50°C range)
- Temperature Measurement Range
- -35° to +50°C
- Steinhart-Hart Equation Error
- ≤ ±0.01°C over measurement range
- Time Constant in Air
- 30 to 60 s
(in a wind speed of 5 m s-1)
- Maximum Submersion Depth
- 15.24 m
(50 ft)
- Probe Diameter
- 0.762 cm
(0.3 in.)
- Probe Length
- 10.4 cm
(4.1 in.)
- Weight
- 136 g
(5 oz) with 3.05-m (10-ft) cable
