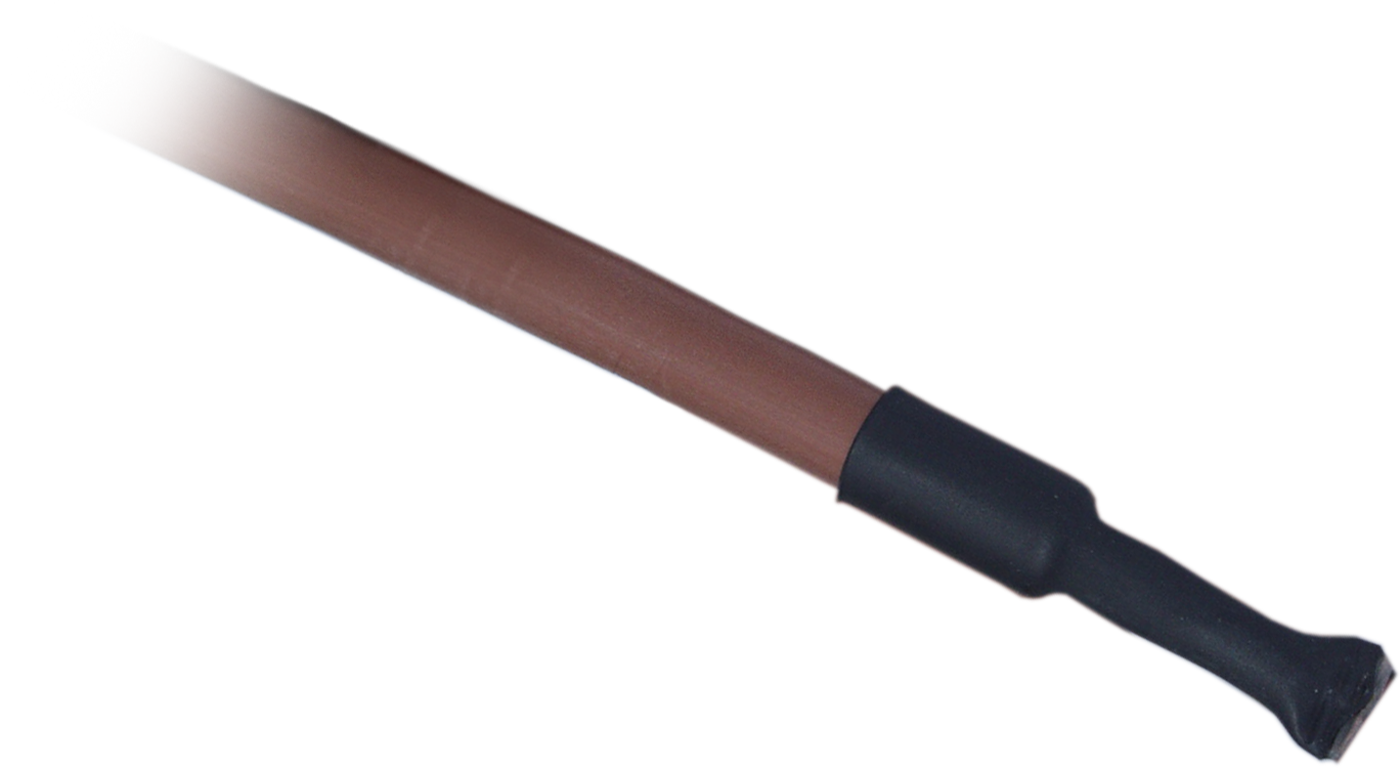

OrderableConfigurableType E Thermocouple Burial Probe
Best for extreme temperatures. Uses a Type E thermocouple. Offers an economical price.
Pricing
Configuration
Sign in for option pricing- w/3m (10ft) per Sensor w/Ferrules on Wires105E-3m
- w/5m (17ft) per Sensor w/Ferrules on Wires105E-5m
- w/10m (33ft) per Sensor w/Ferrules on Wires105E-10m
- w/30m (100ft) per Sensor w/Ferrules on Wires105E-30m
- w/45m (150ft) per Sensor w/Ferrules on Wires105E-45m
Select a configuration to add to your quote
- Model:
- 105E
- Item Number:
- 45120
- Warranty:
- 1 year
- Lead time:
- 14 days
- Compliance:
- with 3-point calibration
Overview
The 105E consists of a 24-gage, shielded, type E thermocouple wire that typically is used to measure soil temperature. Because the thermocouple junction is electrically isolated from the media being measured, you can avoid measurement errors caused by differences in ground potential.
Key Advantages
Can be used in a variety of applications
Technical Description
Type E thermocouples are comprised of a chromel wire and a constantan wire joined at a measurement junction. A voltage potential is generated when the measurement end of the thermocouple is at a different temperature than the reference end of the thermocouple. The magnitude of the voltage potential is related to the temperature difference. Therefore, temperature can be determined by measuring the differences in potential created at the junction of the two wires.
A reference temperature measurement (typically measured at the data logger wiring panel) is required. Options for measuring the reference temperature include:
- Thermistor built into the CR6, CR800, CR850, CR1000, CR3000, or CR5000 wiring panel
- PRT built into the wiring panel of the CR9050 or CR9051E input module for the CR9000X Measurement and Control System
Benefits
- Junction is electrically isolated from the soil, thereby avoiding measurement errors due to differences in ground potential
- Compatible with most Campbell Scientific data loggers
Specifications
- Type
- Chromel-Constantan
- Typical Output
- 60 μV/°C
- Accuracy
- Refer to the Thermocouple Measurement section in the data logger manual.
- Operating Temperature Range
- -55° to +125°C
(of TPE outer jacket)
- Probe Diameter
- 0.8 cm
(0.3 in.)
- Plug Dimensions
- 1.8 x 3.3 x 1.0 cm
(0.7 x 1.3 x 0.4 in.)
- Weight
- 90 g
(0.2 lb) with 3.05-m (10-ft) cable
