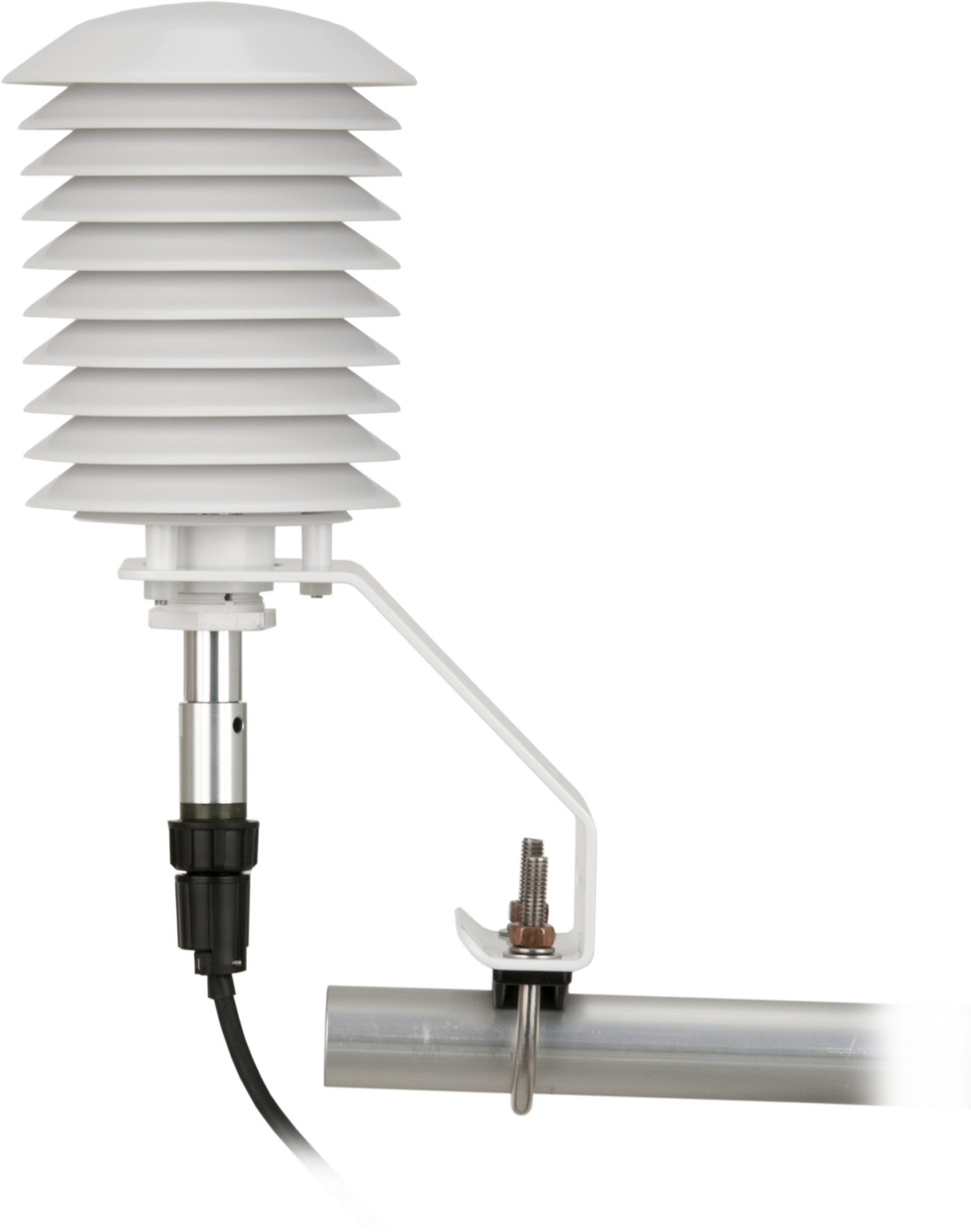

083E-L
083E-L
RetiredConfigurableTemperature and Relative Humidity Sensor
Pricing
- Model:
- 083E-L
- Item Number:
- 28039
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview
The 083E, manufactured by Met One, is a temperature and relative humidity sensor that is commonly used with the WMS100 for wind-farm power performance measurements. The sensor is made of corrosion-resistant aluminum and polymer, and it is water-tight. Use this sensor to measure the full range of relative humidity, from 0 to 100%.
Key Advantages
Technical Description
The 083E Relative Humidity Sensor measures variance in the capacitance change of a one micron thick dielectric polymer layer. This film absorbs water molecules through a metal electrode, and causes a capacitance change that is proportional to relative humidity. The thin polymer layer reacts quickly, providing up to 90% of the final value of relative humidity in fewer than five seconds. The sensor’s response is essentially linear, with small hysteresis, and negligible temperature dependence.
Temperature is measured with an internal thermistor.
Specifications
- Measurement Description
- Temperature, relative humidity
- Signal Type/Output
- Analog voltage
- Input Power
- 4 mA at 12 Vdc
(10 to 14 Vdc)
- Diameter
- 1.91 cm
(0.75 in.)
- Length
- 19.05 cm
(7.5 in.)
- Weight
- 70.9 g
(2.5 oz)
Relative Humidity
- Sensor
- Thin film polymer capacitor
- Measurement Range
- 0 to 100% RH
- Response Time
- 10 s
(with 2 m s-1 aspiration)
- Temperature Coefficient
- 0.04% RH per °C
- Accuracy
- ±2.0% from 0 to 100% humidity
- Output Signal Range
- 0 to 1 Vdc
Air Temperature
- Sensor
- Thermistor
(precision multi-element)
- Operating Temperature Range
- -50° to +50°C
- Accuracy
- ±0.10°C
(0.18°F)
- Output
- Resistive
