Wind Sentry Vane
03301
OrderableConfigurableWind Sentry Vane
Pricing
Configuration
Sign in for option pricing- w/3m per Sensor -PF w/ Ferrules on Wires03301-3m
- w/5m per Sensor -PF w/ Ferrules on Wires03301-5m
- w/10m per Sensor -PF w/ Ferrules on Wires03301-10m
- w/15m per Sensor -PF w/ Ferrules on Wires03301-15m
Select a configuration to add to your quote
- Model:
- 03301
- Item Number:
- 45011
- Warranty:
- 1 year
- Lead time:
- 14 days
Overview

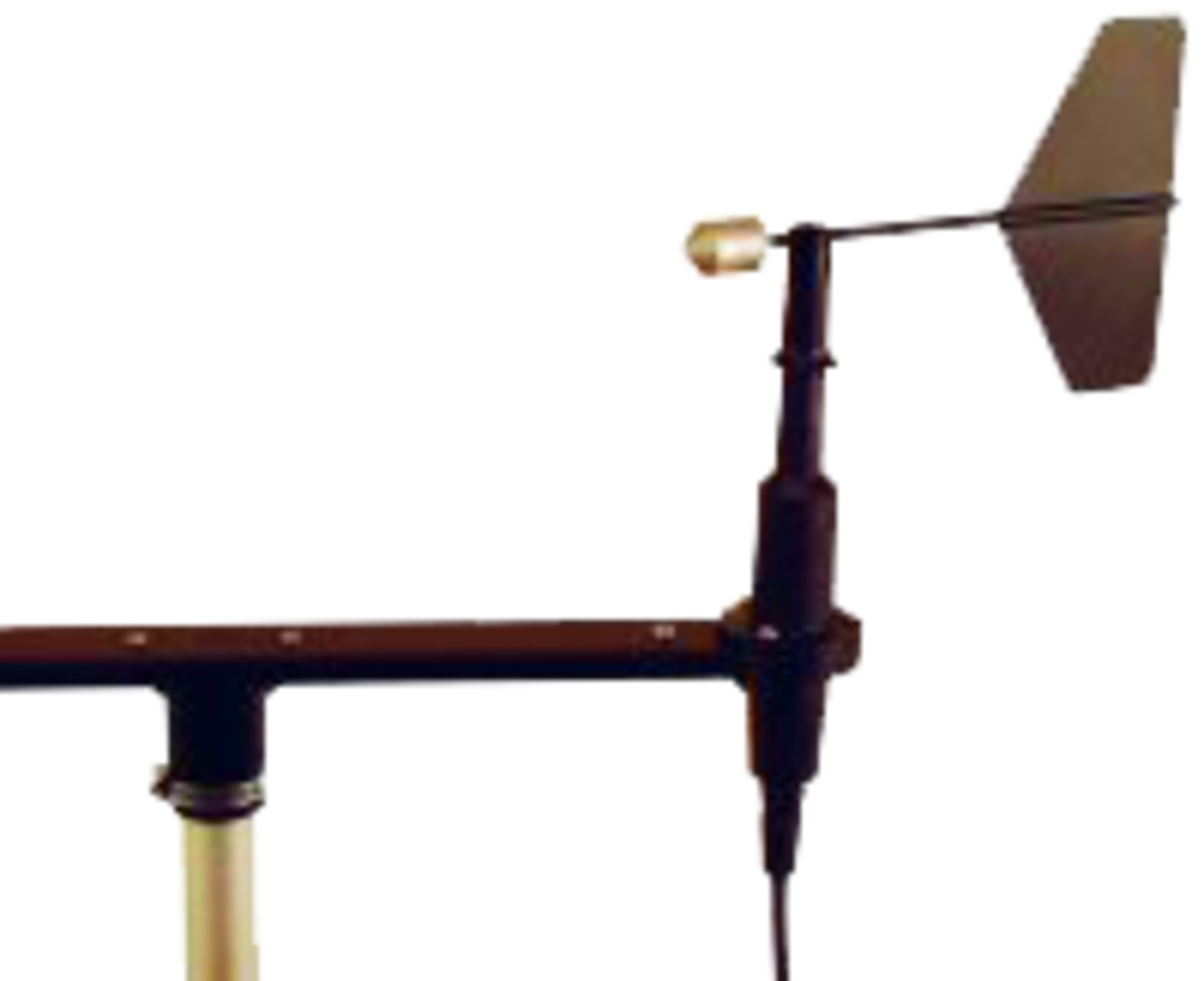

RM Young Wind Sentry Direction Sensor (-50 to +50C)
The 03301, manufacted by R. M. Young, is the wind vane included with our Wind Sentry Sets (03002, 03001). Although some customers have valid applications that require monitoring wind speed only (without direction), monitoring wind direction only (without wind speed) provides little useful information. For this reason, the 03301 is available for two purposes:
- As a replacement vane for a Wind Sentry Set that requires replacement of the vane only
- As an "upgrade" for a customer that originally purchased only the anemometer and now wants to add the vane to make a complete Wind Sentry Set
Key Advantages
Reliable, Accurate Wind Direction
Sensor for only measuring wind direction
Sensor for only measuring wind direction
Specifications
- Sensor
- Vane
- Measurement Description
- Wind direction
- Operating Temperature Range
- -50° to +50°C
(assuming non-riming conditions)
- Mechanical Range
- 360°
- Electrical Range
- 352°
(8° open)
- Sensor
- Balanced vane; 16 cm turning radius
- Accuracy
- ±5°
- Damping Ratio
- 0.2
- Delay Distance
- 0.5 m
(1.6 ft ) 50% recovery
- Starting Threshold
- 0.8 m s-1
(1.8 mph) with 10° displacement
- Starting Threshold
- 1.8 m/s
(4 mph) with 5° displacement
- Transducer
- Precision conductive plastic potentiometer
(10 kohm resistance)
- Transducer
- 1.0% linearity
- Transducer
- Life expectancy is 50 million revolutions.
- Transducer
- Rated 1 W at 40°C, 0 W at 125°C.
- Transducer Excitation
- Requires regulated dc voltage
(15 Vdc maximum)
- Transducer Output
- Analog dc voltage proportional to wind direction angle with regulated excitation voltage supplied by the data logger
- Vane Length
- 22 cm
(8.7 in.)
- Weight
- 170 g
(6 oz)
